10137945-10112TLF

Edgeboard Connectors Overview

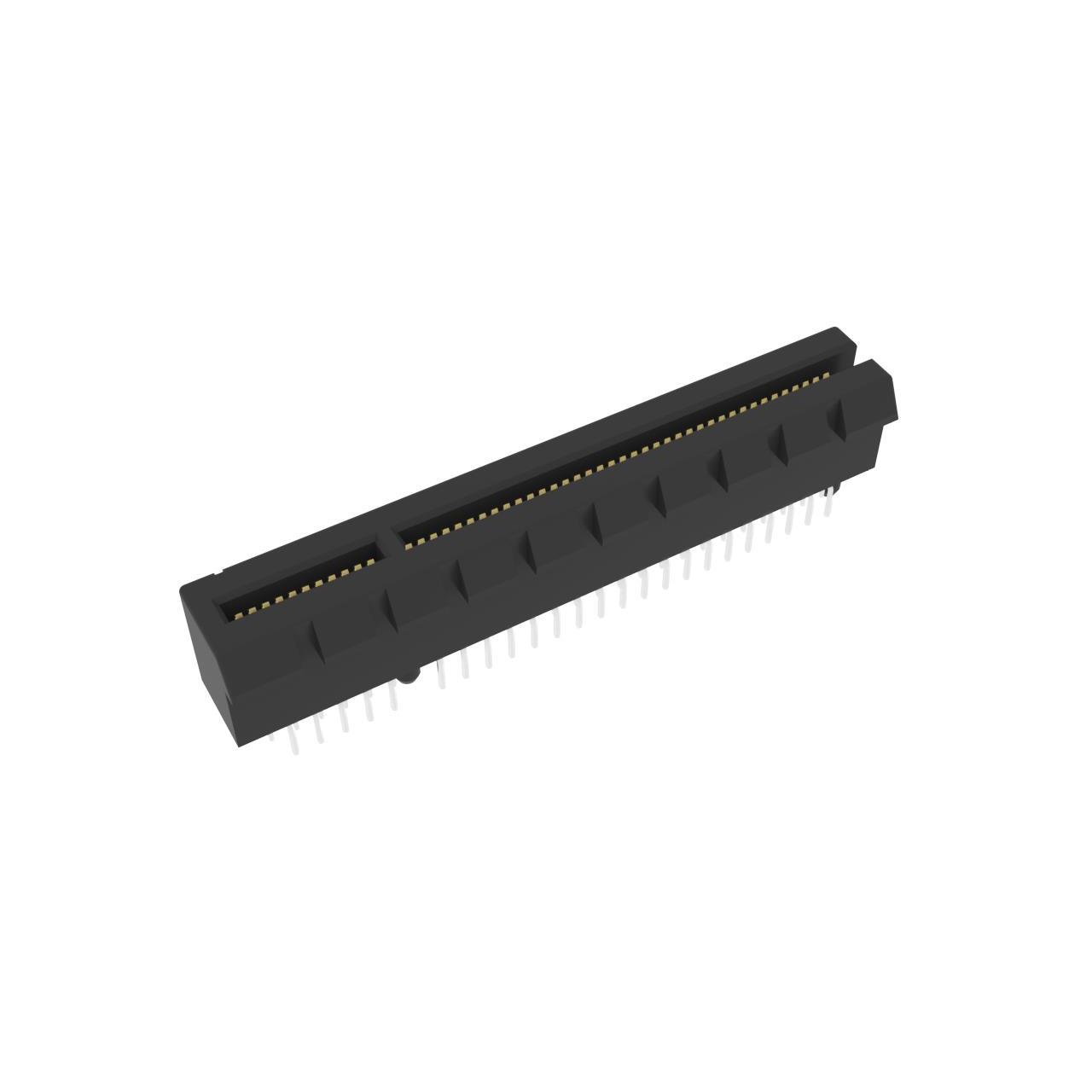

The Amphenol ICC (FCI) 10137945-10112TLF is a PCI Express card edge connector designed for open-end vertical through-hole mounting. It features 98 positions with a 0.039-inch pitch, providing reliable signal integrity for high-speed data transmission in PCIe applications.

Edgeboard Connectors Feature Summary

• Vertical orientation for board-to-board connectivity
• Through-hole termination for secure mechanical attachment
• Open-end design compatible with standard card edge profiles

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-speed data communication modules
• Server and storage system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin configuration and plating requirements. Ensure compatibility with the target PCB stack-up and mating card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, through-hole PCIe interface is required. Confirm that the 98-position count and 0.039-inch pitch align with the system's electrical and mechanical design constraints.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol FCI PCI Express series, engineered for robust performance in demanding computing environments. The product line supports various form factors and contact counts to meet diverse industry standards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 98-position vertical PCIe connectors from the same manufacturer family. Verify identical pitch and mounting style before substituting to ensure mechanical fit.
