Product Detailed Parameters
- Description：MINITEK UN-SHROUDED-HEADER STRAI
- Series：Minitek® 2.00mm
- Mfr：Amphenol ICC (FCI)
- Package：Bulk,Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.126" (3.20mm)
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：0.315" (8.00mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold, GXT™
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A (AC/DC)
- Voltage Rating：200VAC/DC
Download product information
Overview

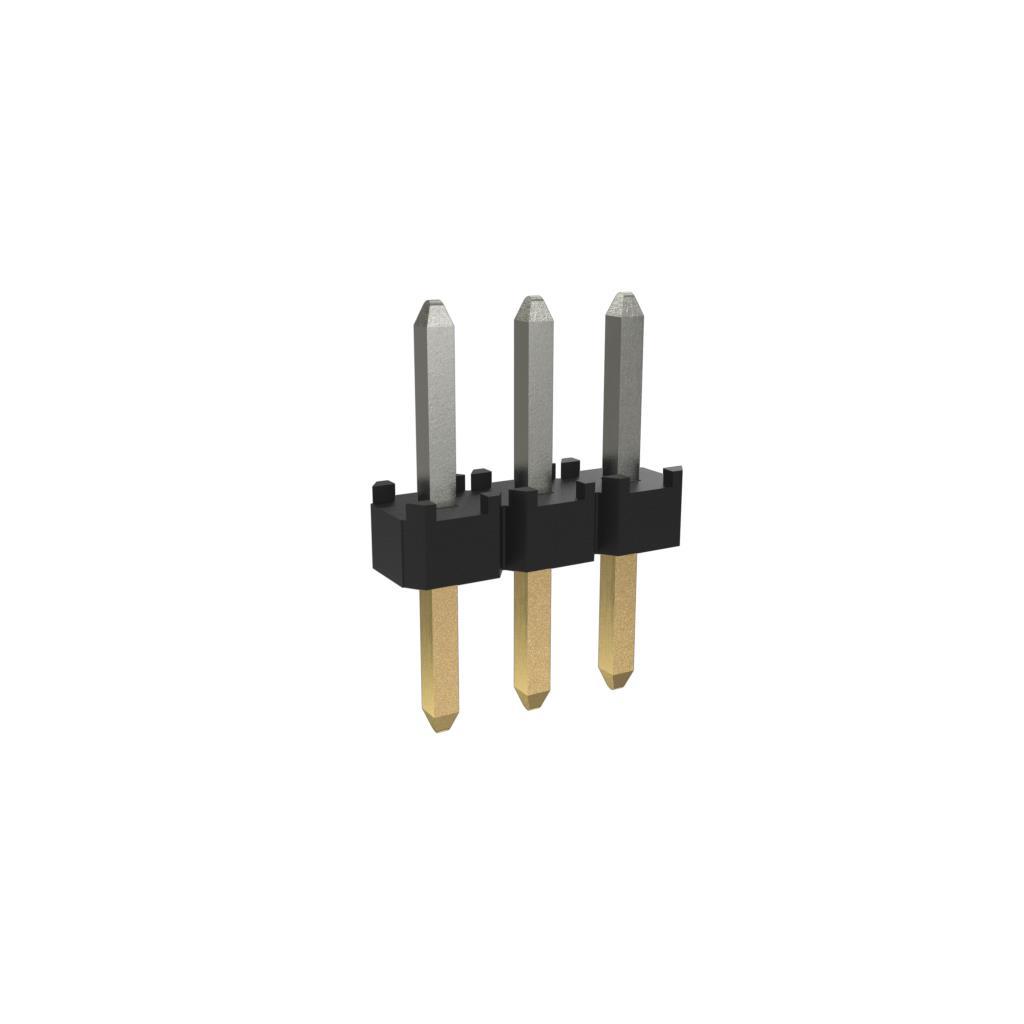

The Amphenol ICC (FCI) 10138654-G03-03LF is a Minitek series connector header designed for board-to-board applications. It features a straight, unshrouded configuration with male pin contacts and a 2.00mm pitch spacing. The component utilizes through-hole termination and is constructed from copper alloy contacts with gold plating to ensure reliable signal transmission. Rated at 3A per contact and 750Vrms, it operates within a temperature range of -55°C to 125°C.
Feature Summary
- Compact design optimized for space-saving board-to-board interconnections
- Gold-plated male pins provide durable and reliable electrical contact surfaces
- Straight orientation facilitates efficient vertical mounting on printed circuit boards
Applications
- High-density electronic assemblies requiring minimal footprint
- Data communication equipment internal connections
- Industrial control system board interconnects
Procurement Notes
Verify the specific suffix G03-03LF against official datasheets to confirm exact contact count and packaging details. Ensure compatibility with mating receptacles regarding pitch and shroud style. Confirm material specifications match environmental requirements before procurement.
Selection Notes
Select this component when a compact, unshrouded header is required for high-density layouts. Consider the 2.00mm pitch and through-hole mounting method for PCB integration. Evaluate current ratings and operating temperature ranges against system thermal profiles.
Part Context
This part belongs to the Minitek family of connectors, which are engineered for cost-effective and reliable interconnect solutions. The series offers various configurations including single and double row options, catering to diverse board-to-board and wire-to-board needs in modern electronics.
Replacement Considerations
Direct substitutes must maintain identical 2.00mm pitch, male pin type, and through-hole termination. Verify that alternative headers support the same 3A current rating and operate within the specified -55°C to 125°C temperature range.
