Product Detailed Parameters
- Description：MINITEK UN-SHROUDED-HEADER STRAI
- Series：Minitek® 2.00mm
- Mfr：Amphenol ICC (FCI)
- Package：Bulk,Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.126" (3.20mm)
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：0.315" (8.00mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold, GXT™
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A (AC/DC)
- Voltage Rating：200VAC/DC
Download product information
Overview

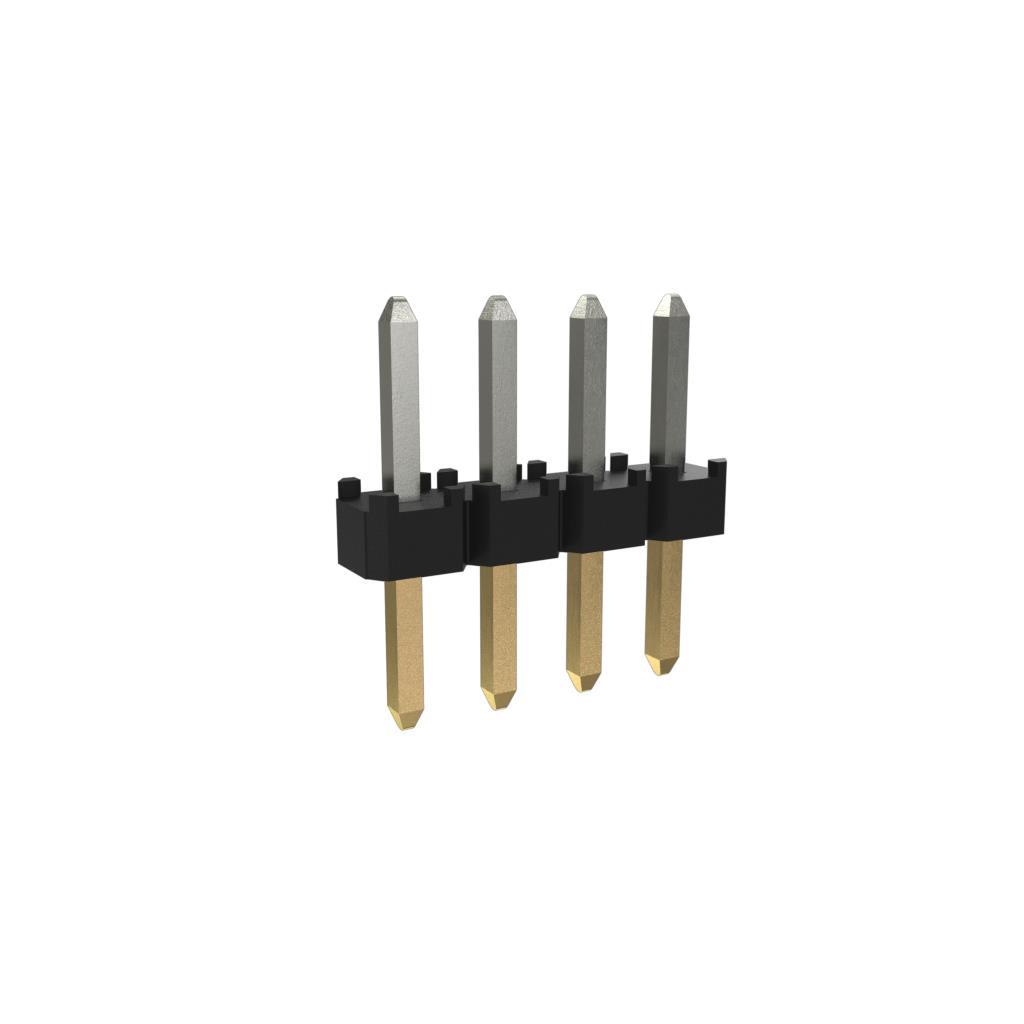

The Amphenol ICC (FCI) 10138654-G03-04LF is a Minitek unshrouded header connector designed for through-hole PCB mounting. It features a straight configuration with four positions and a 2.00mm (0.079 inch) pin spacing. The component utilizes male pins to establish electrical connections within compact electronic assemblies.
Feature Summary
- Unshrouded male pin header design
- Straight orientation for direct board insertion
- Through-hole termination method
Applications
- Compact PCB interconnects
- Wire-to-board assembly
- General electronics signal routing
Procurement Notes
Verify the specific ordering suffix and contact manufacturer documentation for current lead times and availability status. Confirm that the unshrouded header configuration matches the intended mechanical clearance requirements before finalizing procurement orders.
Selection Notes
Select this component for applications requiring a low-profile, straight male header with 2.00mm pitch. Ensure the target PCB layout supports through-hole mounting and accommodates the unshrouded pin exposure for proper mating.
Part Context
This part belongs to the Minitek series of connectors from Amphenol ICC (FCI). The series provides reliable interconnection solutions for various electronic devices, emphasizing compact form factors and robust performance in standard industrial and consumer applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Amphenol ICC catalogs for compatible alternatives if this specific configuration is unavailable.
