Product Detailed Parameters
- Description：MINITEK UN-SHROUDED-HEADER STRAI
- Series：Minitek® 2.00mm
- Mfr：Amphenol ICC (FCI)
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.217" (5.50mm)
- Contact Length - Post：0.109" (2.76mm)
- Overall Contact Length：0.384" (9.75mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold, GXT™
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A (AC/DC)
- Voltage Rating：200VAC/DC
Download product information
Overview

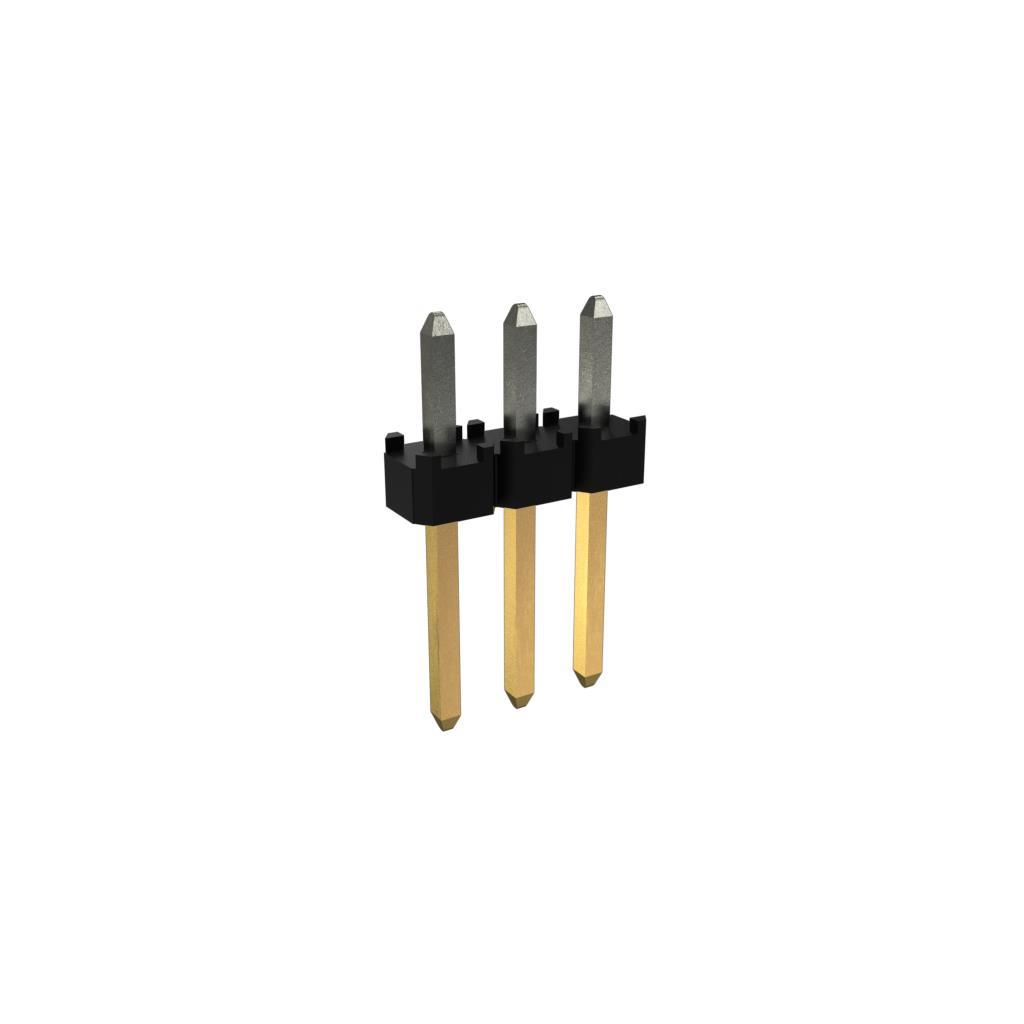

The Amphenol ICC (FCI) part number 10138654-G04-03LF is a Minitek series straight pin header designed for board-to-board and wire-to-board applications. It features a 2.00mm pitch with a single row configuration containing three contacts. The connector utilizes through-hole termination and copper alloy contacts with tin post plating. It operates within a temperature range of -55°C to 125°C, supports a maximum voltage rating of 200V, and provides a current rating of 2A per contact.
Feature Summary
- Straight body orientation suitable for standard PCB mounting profiles
- Space-saving design utilizing 2.00mm pitch for high-density layouts
- Tin-plated copper alloy contacts ensure reliable electrical conductivity
Applications
- Board-to-board interconnections in compact electronic assemblies
- Wire-to-board connections for peripheral device integration
- General-purpose signal routing in consumer electronics
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and insulation material properties. Ensure the selected variant matches the required current and voltage ratings for the target application. Confirm that the through-hole package style aligns with the manufacturing process capabilities of the printed circuit board assembly line.
Selection Notes
Select this component when a low-profile, single-row header is required for tight spatial constraints. The 2.00mm pitch offers a balance between connection density and mechanical stability. Consider the 2A per contact rating for power distribution needs and verify compatibility with mating receptacles from the same Minitek series family.
Part Context
This component belongs to the Minitek series, which focuses on space-saving solutions for modern electronics. The 10138654-G04-03LF represents a specific configuration within the broader catalog of headers available from Amphenol ICC (FCI), tailored for applications requiring reliable signal transmission in restricted volumes.
Replacement Considerations
Direct substitutes must maintain the 2.00mm pitch, single-row layout, and three-contact count. Verify that alternative headers support identical through-hole termination and match the 200V/2A electrical specifications. Cross-reference mating connectors to ensure mechanical and electrical compatibility.
