10138654-G04-04LF

Overview

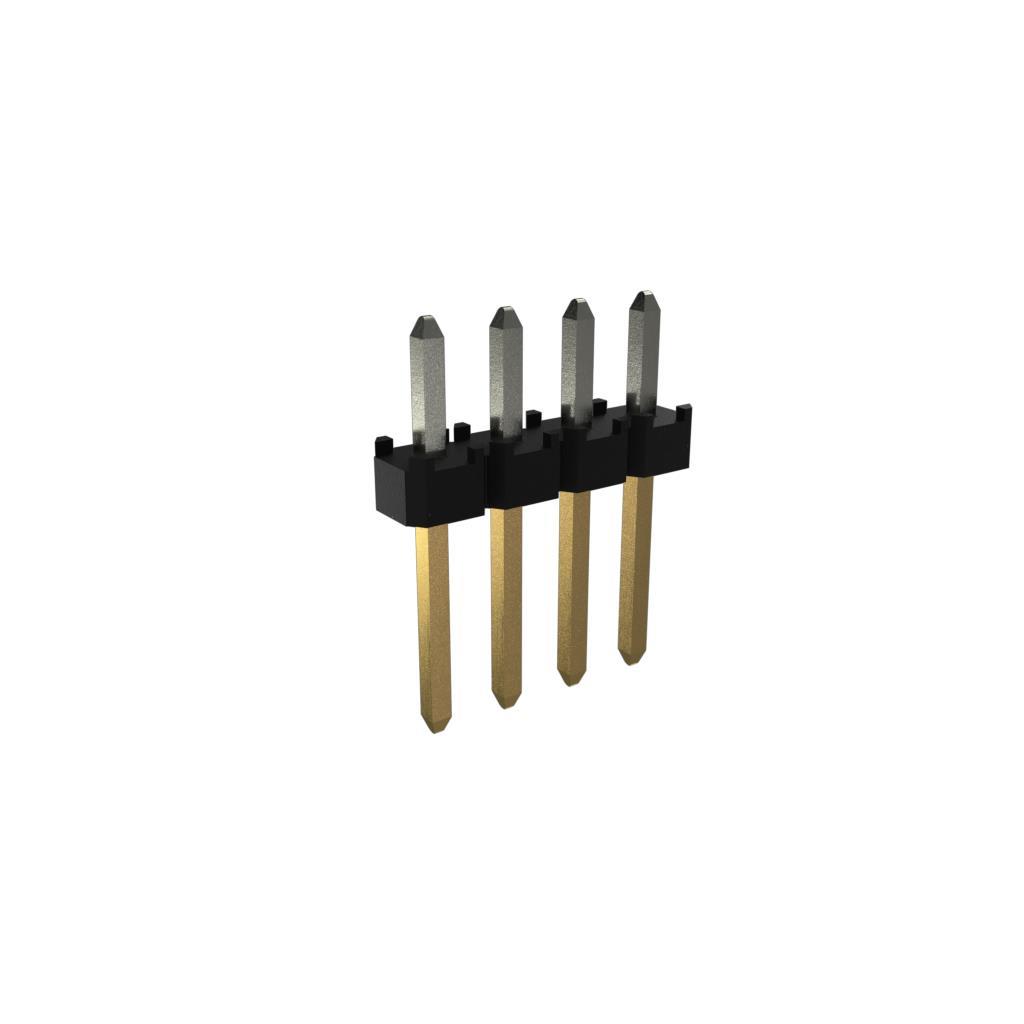

The Amphenol ICC (FCI) 10138654-G04-04LF is a pin header connector from the Minitek series, designed for through-hole mounting. It features a 2mm pitch and a single row with four positions. The contacts are made of copper alloy with a tin finish on the post side. The insulation material is thermoplastic, supporting an operating temperature range of -55°C to 125°C.

Feature Summary

• Through-hole termination method ensures secure board attachment
• Tin-plated copper alloy contacts provide reliable conductivity
• Thermoplastic insulation supports standard industrial temperature ranges

Applications

• Communication equipment interconnections
• Data processing system connections
• Industrial control circuit interfaces

Procurement Notes

Verify the specific contact finish and row configuration against official datasheets before procurement. Confirm that the tin-plated post variant matches the design requirements. Ensure compatibility with mating connectors in the target assembly environment.

Selection Notes

Select this component when a low-profile, single-row header is required for through-hole applications. The 2mm pitch offers a balance between density and spacing. Verify thermal stability requirements against the specified operating temperature range.

Part Context

This part belongs to the Minitek family of connectors, which are widely used in compact electronic assemblies. The model number indicates a 4-position header with specific plating characteristics suitable for general-purpose signal transmission.

Replacement Considerations

Check for direct substitutes within the Minitek series or other 2mm pitch headers from Amphenol. Ensure mechanical dimensions and electrical ratings match exactly.
