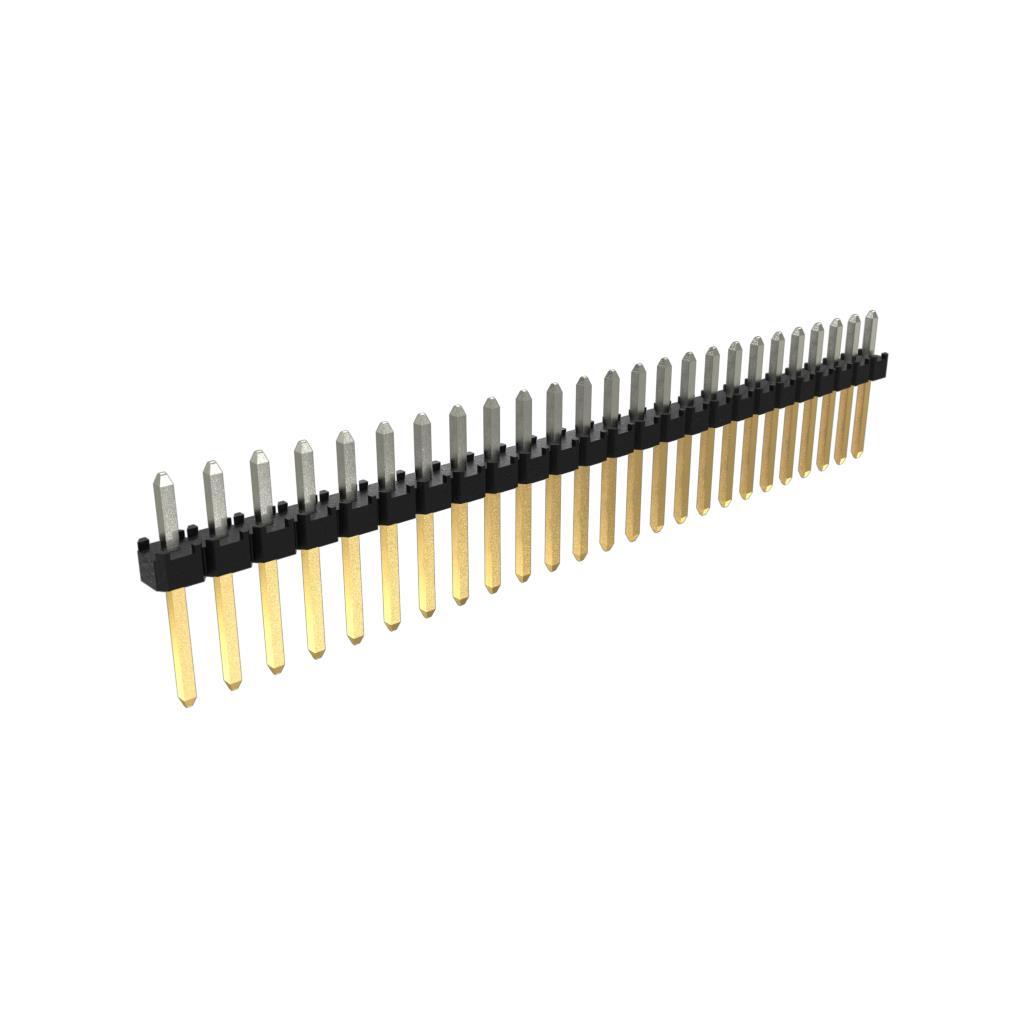

10138654-G04-25LF

$1.31

Description：MINITEK UN-SHROUDED-HEADER STRAI
Series：Minitek® 2.00mm
Mfr：Amphenol ICC (FCI)
Package：Bulk,Bag

SKU:6802e5d36d57 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MINITEK UN-SHROUDED-HEADER STRAI
Series：Minitek® 2.00mm
Mfr：Amphenol ICC (FCI)
Package：Bulk,Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：25
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.217" (5.50mm)
Contact Length - Post：0.109" (2.76mm)
Overall Contact Length：0.384" (9.75mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold, GXT™
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A (AC/DC)
Voltage Rating：200VAC/DC

Download product information

10138654-G04-25LF

Overview

The Amphenol ICC (FCI) part number 10138654-G04-25LF is a board-to-board connector header belonging to the Minitek series. It features a 2.00mm pitch and provides 25 positions arranged in a single row. The connector utilizes through-hole termination for secure mounting on printed circuit boards. Contact materials are copper alloy, with specific surface treatments including gold plating on mating surfaces and tin on tails. The unit supports a maximum current rating of 2A per contact and withstands up to 200V. Insulation resistance is rated at 100 MΩ.

Feature Summary

Straight body orientation designed for direct vertical insertion into PCB layouts
Unshrouded header configuration allowing flexible mating options with various sockets
Gold-plated contact surfaces ensure reliable signal transmission and corrosion resistance

Applications

General purpose board-to-board interconnections
Industrial control system module interfaces
Consumer electronics internal connectivity

Procurement Notes

Verify the exact suffix G04-25LF against official manufacturer documentation to confirm pin count and termination style. Ensure compatibility with mating receptacles regarding shroud design and pitch dimensions. Check for RoHS compliance status if required by project specifications. Confirm availability through authorized distributors as lead times may vary based on production schedules.

Selection Notes

Select this component when a single-row, unshrouded header is required for compact board-to-board applications. The 2.00mm pitch offers a balance between density and ease of assembly. Consider the 2A current rating for power distribution needs within the circuit. Verify that the straight orientation fits the mechanical constraints of the enclosure or adjacent components.

Part Context

This connector is part of the Minitek family, which focuses on high-density interconnect solutions. The series includes various configurations such as shrouded headers, right-angle variants, and different pin counts. The Minitek line is engineered for automated assembly processes, supporting both standard and pin-in-paste techniques for efficient manufacturing workflows.
