10138980-0411LF

Overview

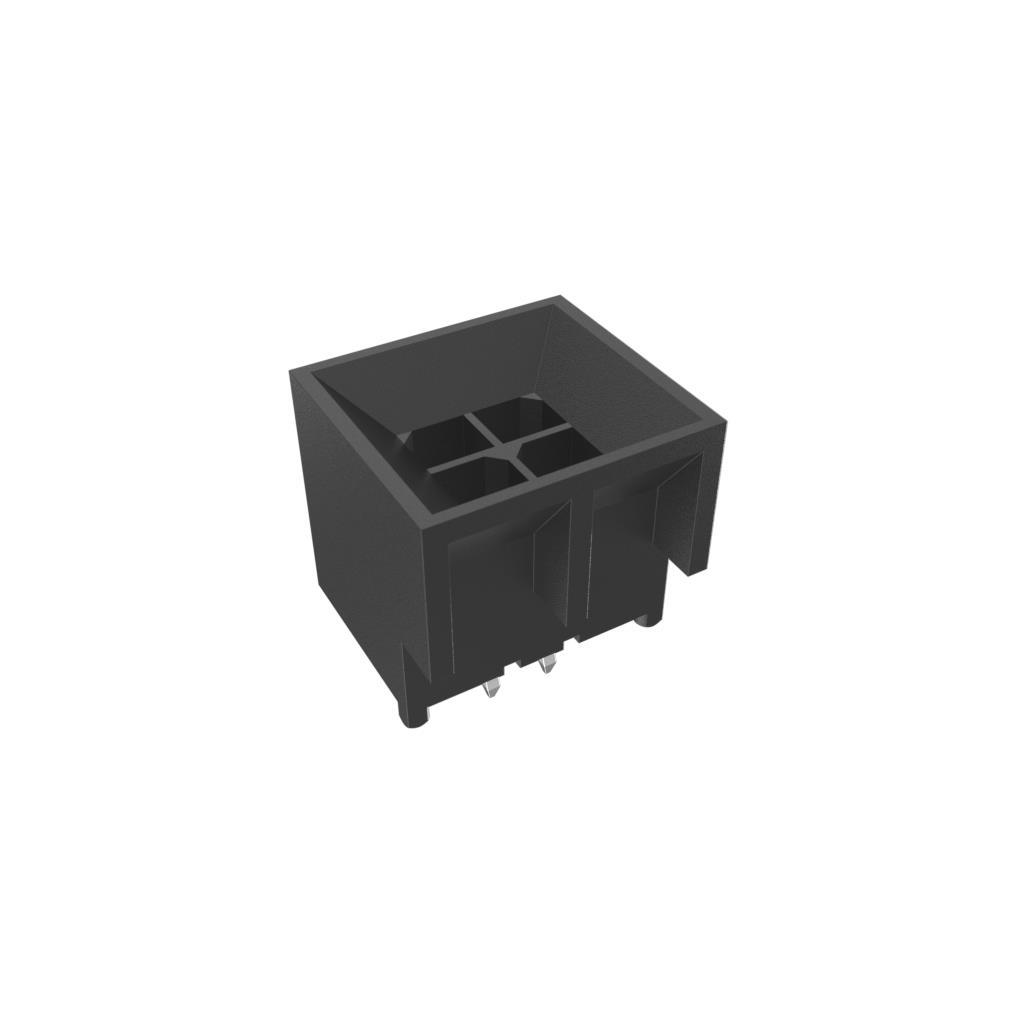

The Amphenol ICC (FCI) 10138980-0411LF is a rectangular connector header featuring male pins designed for through-hole mounting. It comprises four positions with a pitch of 0.118 inches (3.00mm). The component utilizes a vertical orientation and is constructed from copper alloy contacts with tin plating to ensure reliable electrical performance. The housing is made of thermoplastic material, providing structural integrity and insulation. This single-row configuration is intended for secure board-to-board or cable-to-board interconnections in electronic assemblies requiring standard spacing and robust mechanical retention.

Feature Summary

• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Male pin contact configuration facilitates mating with corresponding receptacle sockets
• Vertical orientation optimizes spatial utilization within compact electronic enclosures

Applications

• General-purpose electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics internal wiring harnesses

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing color variants. Ensure the selected variant matches the required current rating and environmental specifications for the target application. Cross-reference the manufacturer's latest datasheet to confirm material compliance and RoHS status before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, four-position header is required for through-hole assembly. The 3.00mm pitch accommodates standard wire gauges and trace widths. Consider the vertical design for space-constrained layouts where height clearance allows. Validate that the tin-plated contacts meet the oxidation resistance requirements of the operating environment.

Part Context

This part belongs to the Amphenol ICC (FCI) family of rectangular connectors, which are widely used in various industrial and commercial applications. The manufacturer provides a comprehensive range of similar headers with varying pin counts and pitches to support diverse connectivity needs across different electronic product categories.

Replacement Considerations

Direct substitutes must match the 4-position count, 3.00mm pitch, and through-hole mounting style. Verify compatibility with existing PCB footprints and mating socket dimensions. Alternative parts should offer equivalent thermal and electrical ratings to maintain system reliability.
