Product Detailed Parameters
- Description：CONN PWR3.0 BMI
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.457" (11.60mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

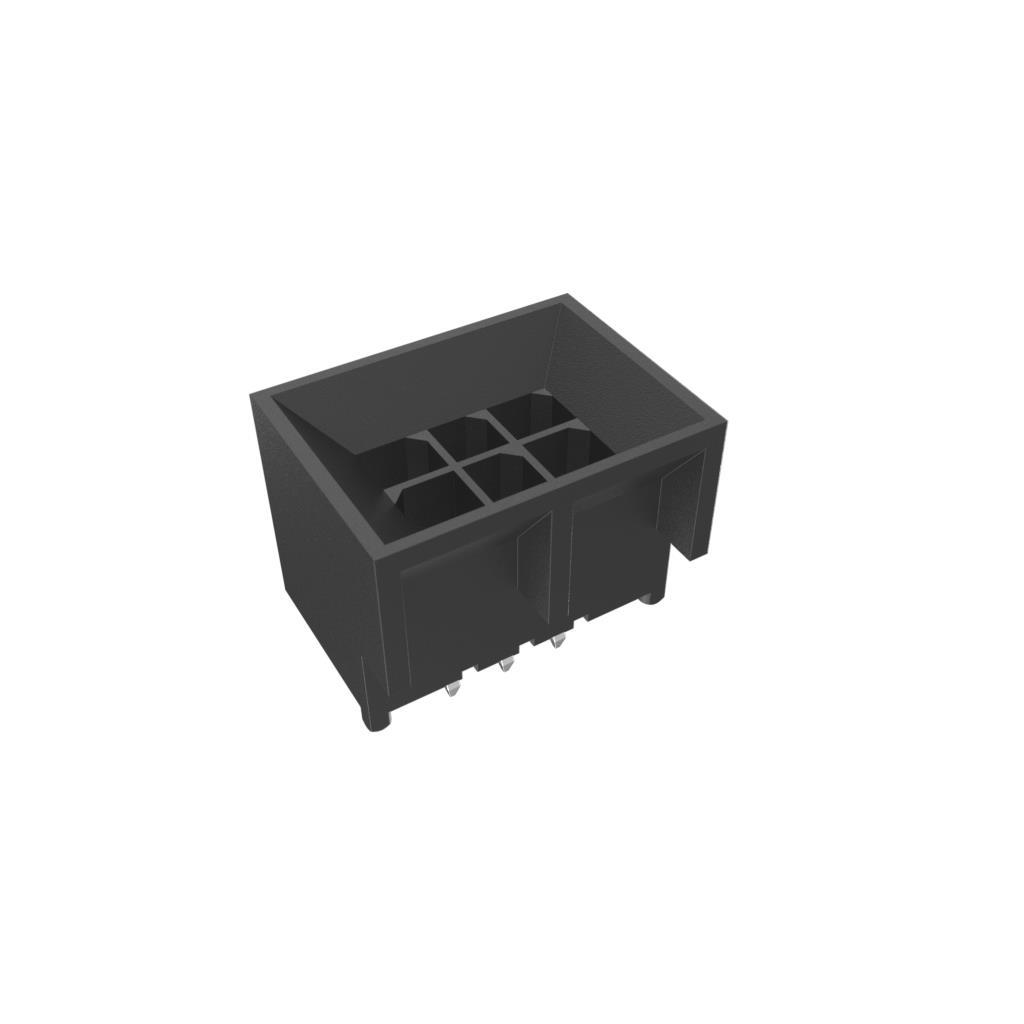

The Amphenol ICC (FCI) part number 10138980-0611LF is a Power to the Board Minitek Power3.0 Double Row Vertical Through-Hole Binary Matrix Interface header with six positions. It features a tin-plated contact finish and is designed for board-to-board connections in compact electronic assemblies.
Feature Summary
- Supports high-density power distribution via binary matrix interface architecture
- Incorporates double-row vertical through-hole mounting for secure PCB attachment
- Utilizes tin-plated contacts to ensure reliable electrical conductivity
Applications
- Server and storage equipment power distribution
- Communication device internal interconnects
- Compact electronic assembly power delivery
Procurement Notes
Verify current availability status as this component may be subject to supply constraints or end-of-life notices. Confirm that the tin-plated finish meets specific environmental requirements for the target application before finalizing procurement orders.
Selection Notes
Select this connector when a low-profile, high-current solution is required for dense power routing. Ensure the mating receptacle matches the binary matrix interface specifications and verify that the through-hole footprint aligns with the printed circuit board design guidelines.
Part Context
This component belongs to the Minitek Power3.0 series by Amphenol ICC (FCI), formerly FCI. The series specializes in integrated power and signal solutions for servers and storage systems, offering robust performance in demanding thermal and mechanical environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative connectors only if they match the exact pin count, pitch, and mounting configuration of the original specification.
FAQ
What is the contact plating material for this connector?
The contacts feature a tin-plated finish.
Is this connector designed for surface mount or through-hole installation?
It is designed for vertical through-hole installation.
