10138980-0812LF

Overview

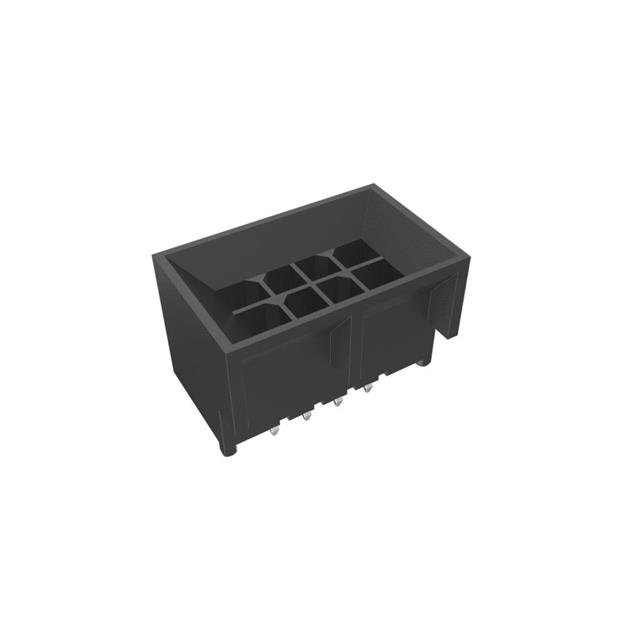

The 10138980-0812LF is a Minitek Pwr 3.0 series power connector manufactured by Amphenol ICC (FCI). It features an 8-position board-to-cable configuration with a 3.00mm pitch. The component utilizes a shrouded, four-wall housing design to ensure proper alignment and protection. Contact surfaces are gold-plated to enhance conductivity and corrosion resistance. This surface-mount header is designed for reliable power distribution in compact electronic assemblies.

Feature Summary

• Minitek Pwr 3.0 series architecture
• Shrouded four-wall housing design
• Gold-plated contact surfaces

Applications

• Industrial equipment power distribution
• Factory automation systems
• IoT device interconnects

Procurement Notes

Verify the specific suffix and revision level against the manufacturer's current datasheet before ordering. Confirm that the active status aligns with long-term supply requirements. Ensure compatibility with the intended PCB footprint and mating cable specifications to prevent integration issues during assembly.

Selection Notes

Select this component when a 3.00mm pitch power interface is required. The shrouded design provides mechanical stability and prevents misalignment during insertion. Gold plating is suitable for applications demanding low contact resistance and durability. Evaluate stacking height constraints relative to the system enclosure.

Part Context

This part belongs to the Minitek Pwr 3.0 family, which offers robust power solutions for space-constrained environments. Amphenol ICC integrates these connectors into broader industrial and communication systems. The series supports various pin counts and configurations to meet diverse power delivery needs across multiple sectors.

Replacement Considerations

No public confirmed substitute part numbers are available.
