Product Detailed Parameters
- Description：CONN PWR3.0 BMI
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.457" (11.60mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：15.0µin (0.38µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

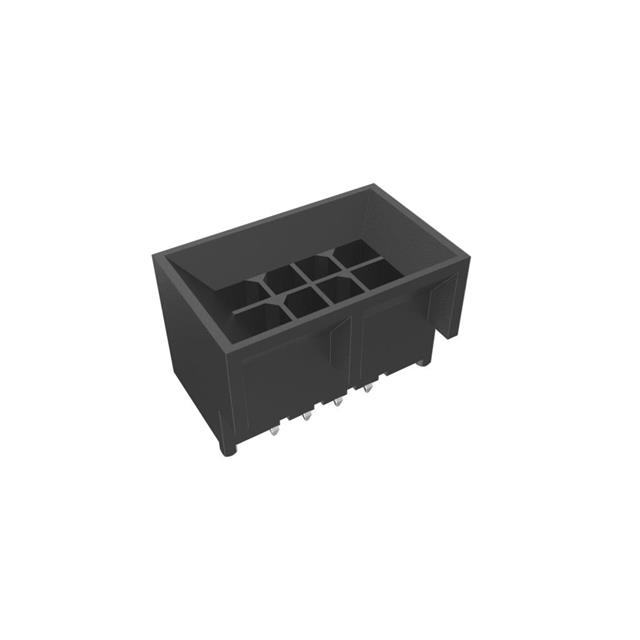

The Amphenol ICC (FCI) part number 10138980-0831LF is a Minitek Power 3.0 Board-to-Board connector header. It features an 8-position configuration with a 3.00mm pitch and Double Row Vertical Through-Hole termination. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. Designed for high-current applications, this component provides robust power distribution in compact electronic assemblies.
Feature Summary
- Minitek Power 3.0 BMI series designed for board-to-board connections
- Double row vertical through-hole termination for secure mounting
- Gold contact plating for enhanced conductivity and durability
Applications
- Server and storage equipment power distribution
- Communication device internal interconnects
- Industrial control system power modules
Procurement Notes
Verify the specific suffix LF indicates lead-free compliance when sourcing. Confirm the double-row vertical orientation matches the PCB footprint requirements. Ensure the 3.00mm pitch aligns with the target assembly design constraints before procurement.
Selection Notes
Select this component for applications requiring high current capacity within a low-profile form factor. The 3.00mm pitch allows for wider spacing compared to standard data headers, reducing crosstalk risks while supporting power delivery needs in dense server or industrial environments.
Part Context
This connector belongs to the Minitek Pwr 3.0 BMI family from Amphenol ICC (FCI). This series integrates power and signal contacts specifically for server, storage, and communication equipment. It represents a specialized solution for board-to-board power distribution rather than general-purpose data signaling.
Replacement Considerations
Consult official Amphenol ICC (FCI) documentation for direct cross-reference substitutes. Verify mechanical dimensions and electrical ratings match exactly if considering alternative manufacturers.
