Product Detailed Parameters
- Description：CONN PWR3.0 BMI
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.457" (11.60mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

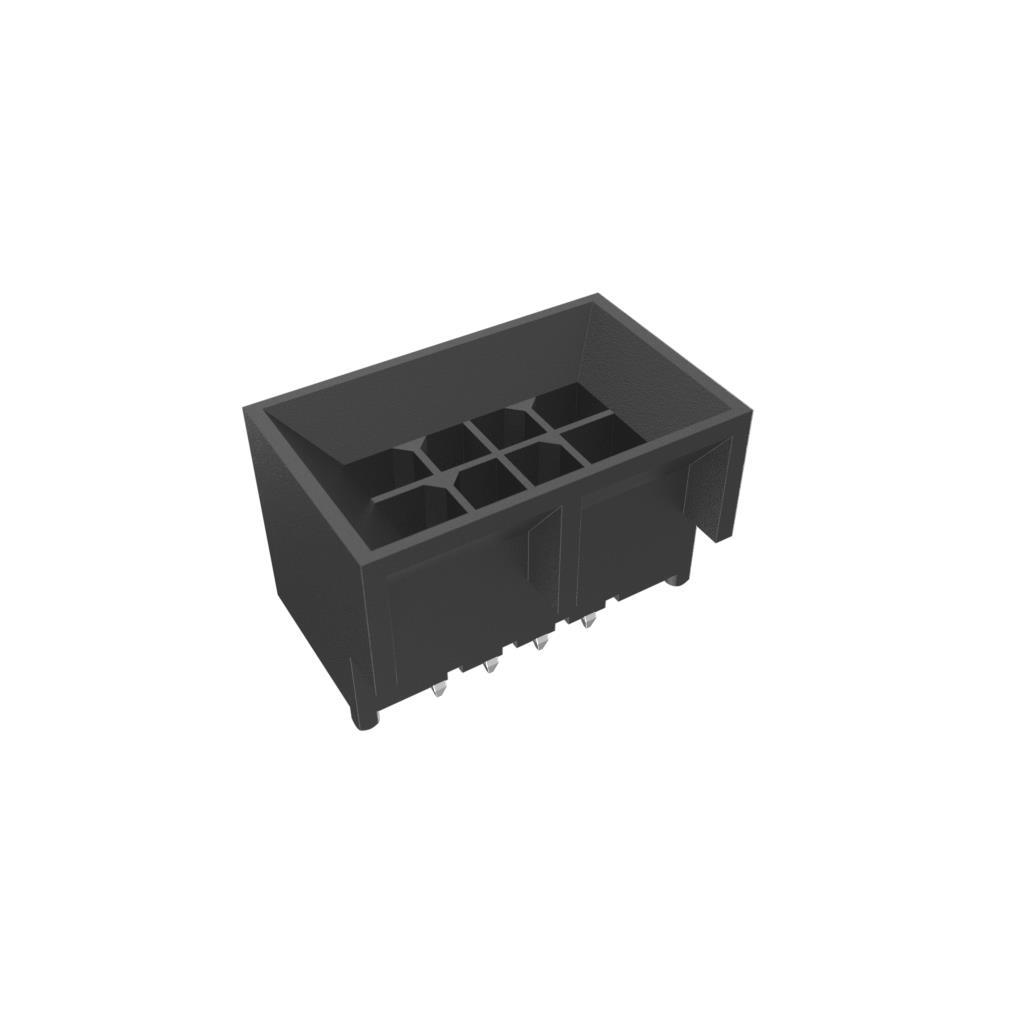

The Amphenol ICC (FCI) part number 10138980-0841LF is a Power 3.0 Board Mount Interface (BMI) connector component. It belongs to the BMI series designed for power distribution applications in server and storage systems. The connector provides a reliable electrical interface with specific mechanical dimensions suited for board-to-board or cable-to-board power connections.
Feature Summary
- Designed for high-power density applications in data center infrastructure
- Features a robust board mount interface for secure system integration
- Supports efficient power distribution within compact equipment layouts
Applications
- Server power distribution units
- Storage device power interfaces
- Telecommunications equipment power supply connections
Procurement Notes
Verify the exact suffix and environmental compliance status directly with the manufacturer before ordering. Confirm that the specific variant matches your system's mechanical and electrical requirements. Ensure all documentation references the correct part number to avoid integration errors during procurement.
Selection Notes
Select this component when a dedicated power interface is required for BMI-based architectures. Evaluate the current carrying capacity and mating cycle requirements against the connector specifications. Ensure compatibility with existing PCB footprints and housing constraints for seamless assembly.
Part Context
This component is part of the FCI Basics portfolio, now under Amphenol ICC. The BMI series focuses on cost-effective yet durable solutions for industrial and commercial electronics. It represents a standardized approach to power connectivity within the broader Amphenol interconnect ecosystem.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official Amphenol ICC cross-reference guides for verified alternatives if this specific part number is unavailable.
