Product Detailed Parameters
- Description：CONN PWR3.0 BMI
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.457" (11.60mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

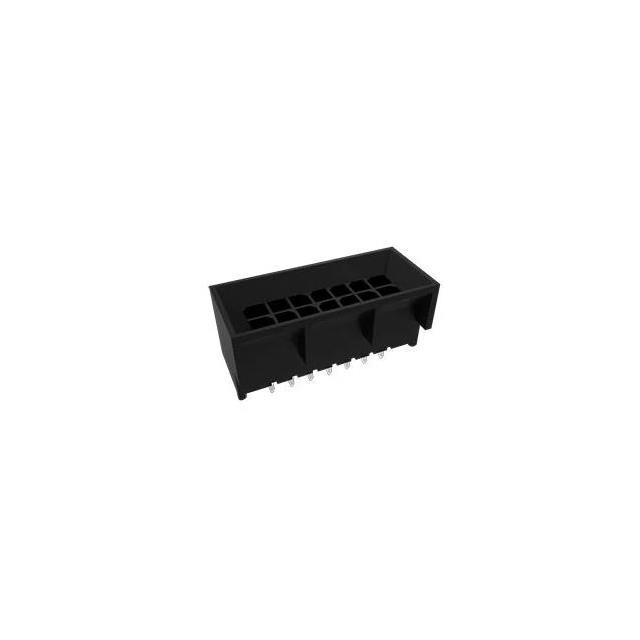

The Amphenol ICC (FCI) 10138980-2011LF is a rectangular connector from the Minitek Pwr 3.0 BMI series, designed for board-to-board or backplane applications. It features a 2.00mm pitch and utilizes liquid crystal polymer insulation for high thermal stability. The component supports male pin contact types and is engineered to meet the requirements of dense interconnect systems.
Feature Summary
- Utilizes robust liquid crystal polymer insulation material for enhanced thermal performance
- Designed specifically for the Minitek Pwr 3.0 BMI connector system architecture
- Supports male pin contact configuration for reliable signal transmission
Applications
- Chemical detection systems
- Patient monitors
- Air conditioning control units
Procurement Notes
Verify current availability status as distribution channels may list this item with varying lead times or obsolescence notices. Confirm that the specific suffix matches the required mechanical and electrical specifications for your design integration. Ensure compliance with RoHS directives if applicable to your manufacturing region.
Selection Notes
Select this component when a 2.00mm pitch male pin connector is required within the Minitek Pwr 3.0 ecosystem. Consider the liquid crystal polymer construction for environments demanding higher heat resistance compared to standard thermoplastics. Validate mechanical fit against the mating board stack-up requirements.
Part Context
This part belongs to the Minitek Pwr 3.0 BMI series by Amphenol ICC (FCI). The series focuses on high-density power and signal interconnect solutions. The 10138980 base number indicates the housing or header configuration, while the -2011LF suffix defines the specific pin count and termination style.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Engineers should consult official Amphenol ICC (FCI) resources for cross-reference data or equivalent series components if this specific model is unavailable.
