10139595-110T0LF

Edgeboard Connectors Overview

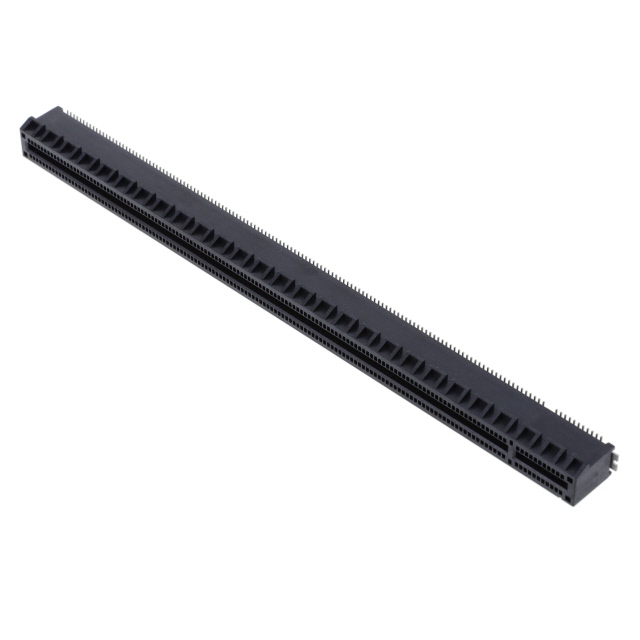

The Amphenol ICC (FCI) 10139595-110T0LF is a high-density edgeboard connector designed for PCI Express applications. It features 280 positions with a 1.00 mm pitch and accepts female contacts. The unit utilizes gold plating on the contact surfaces to ensure reliable signal transmission in demanding environments. Constructed with black thermoplastic housing, it supports operating temperatures ranging from -55°C to +85°C. This component serves as a critical interface for board-to-board connections in high-speed data processing systems.

Edgeboard Connectors Feature Summary

• High-density configuration with 280 positions for compact system integration
• Gold-plated female contacts for enhanced conductivity and corrosion resistance
• Robust black thermoplastic housing suitable for harsh industrial conditions

Edgeboard Connectors Applications

• PCI Express board-to-board interconnects
• High-speed data processing systems
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and RoHS compliance status directly with the manufacturer or authorized distributors before finalizing procurement. Confirm that the requested part number matches the exact pin count and pitch requirements of the target design. Ensure all technical specifications align with the latest official datasheets to avoid compatibility issues during assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count edgeboard connector is required for PCI Express architectures. The 1.00 mm pitch allows for significant I/O density within limited board space. Consider the -55°C to +85°C temperature range for suitability in varied environmental conditions. Ensure mating connectors match the specified female contact type and gold finish for optimal electrical performance.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol ICC (FCI) portfolio, formerly known as FCI, which was acquired by Amphenol. The company specializes in high-performance interconnect solutions for information technology and communication markets. The 10139595 series represents their focus on high-density, reliable connections for modern electronic devices requiring robust signal integrity.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing PCB footprints and mating components before attempting any substitution.
