10139595-111T0LF

Edgeboard Connectors Overview

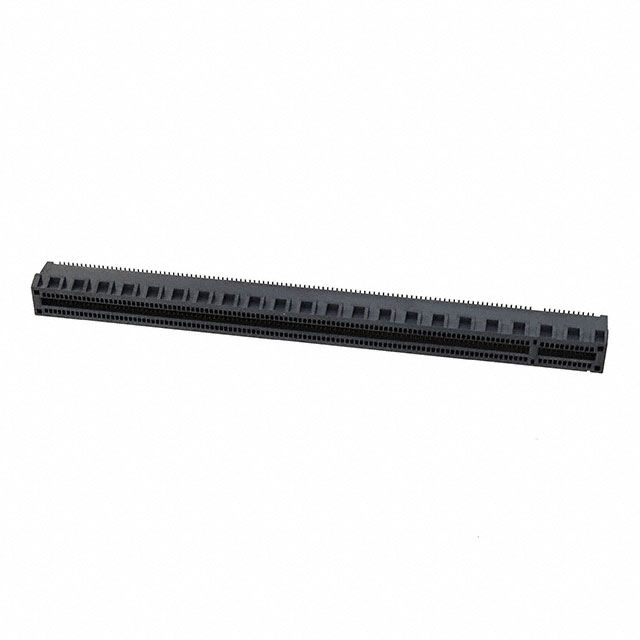

The Amphenol ICC (FCI) 10139595-111T0LF is a vertical card edge connector designed for PCI Express applications. It features 230 positions with a 1.00mm pitch and utilizes gold-plated copper alloy contacts. The component employs a thermoplastic, glass-filled insulation material and includes board guides, locking ramps, and solder retention mechanisms to ensure secure installation.

Edgeboard Connectors Feature Summary

• Vertical card edge connector configuration
• Board guide and locking ramp integration
• Solder retention mechanism
• Gold-plated copper alloy contacts

Edgeboard Connectors Applications

• PCI Express Gen 4/5 systems
• High-speed data transmission interfaces
• Server backplane connections

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the base product number 10139595 matches the required mechanical footprint. Ensure the supplier provides original manufacturer documentation to validate contact plating thickness and material specifications.

Edgeboard Connectors Selection Notes

Select this component for high-density PCI Express applications requiring robust mechanical locking. The 1.00mm pitch supports modern high-speed signaling standards. Verify compatibility with mating card edge thicknesses and ensure the vertical orientation fits the assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the PCIe® Gen 4/5 connector series from Amphenol ICC (FCI). It is engineered for demanding high-speed digital environments where signal integrity and mechanical stability are critical. The design focuses on reliable performance in server and storage infrastructure applications.

Edgeboard Connectors Replacement Considerations

Check for updated revisions of the 10139595 series. Verify pin count and pitch compatibility with existing designs. Consult official substitution lists for any newer generations within the same connector family.
