10142333-10010MLF

Edgeboard Connectors Overview

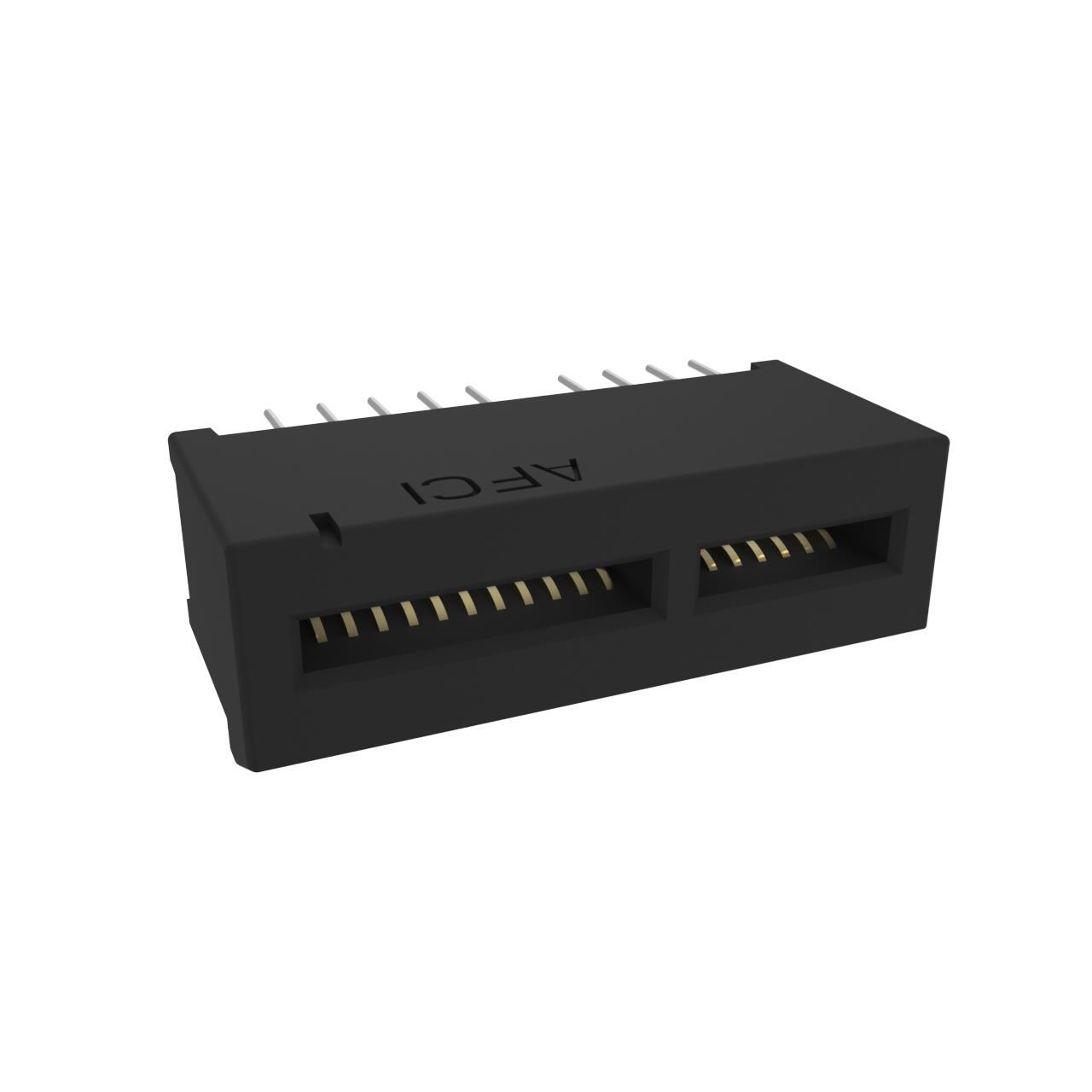

The Amphenol ICC (FCI) part number 10142333-10010MLF is a PCI Express female card edge connector designed for high-speed data transmission. It features a 36-position configuration with a 0.039-inch (1.00mm) pitch. The connector utilizes gold plating on the contacts to ensure reliable signal integrity and low contact resistance. It is constructed with a black insulator and is intended for surface mount or specific mounting peg applications within electronic systems requiring PCIe interface connectivity.

Edgeboard Connectors Feature Summary

• PCI Express compatible female card edge design
• Gold-plated contacts for enhanced conductivity
• 36-position layout with 1.00mm pitch

Edgeboard Connectors Applications

• High-performance computing motherboards
• Graphics processing unit expansion slots
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific mounting style and termination requirements against the official datasheet before ordering. Confirm that the gold plating specification meets the environmental and durability standards required for the target application. Ensure compatibility with the mating card dimensions and pitch tolerances defined by the manufacturer's specifications.

Edgeboard Connectors Selection Notes

Select this component when a compact 36-position PCIe interface is required. The 1.00mm pitch allows for dense board layouts compared to standard 0.100-inch connectors. Consider the mechanical stability provided by the mounting pegs if applicable, and verify that the gold contact finish aligns with the electrical performance needs of the high-frequency signals.

Edgeboard Connectors Part Context

This connector belongs to the PCI Express family produced by Amphenol ICC (FCI). It serves as a critical interface between the motherboard and peripheral cards. The product line supports various position counts and pitches to accommodate different form factors and bandwidth requirements in modern electronic devices.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 36-position count, 1.00mm pitch, and female card edge configuration. Verify equivalent gold plating thickness and mounting styles. Cross-reference with other Amphenol ICC series parts only if they share identical mechanical and electrical specifications.
