10142333-10022MLF

Edgeboard Connectors Overview

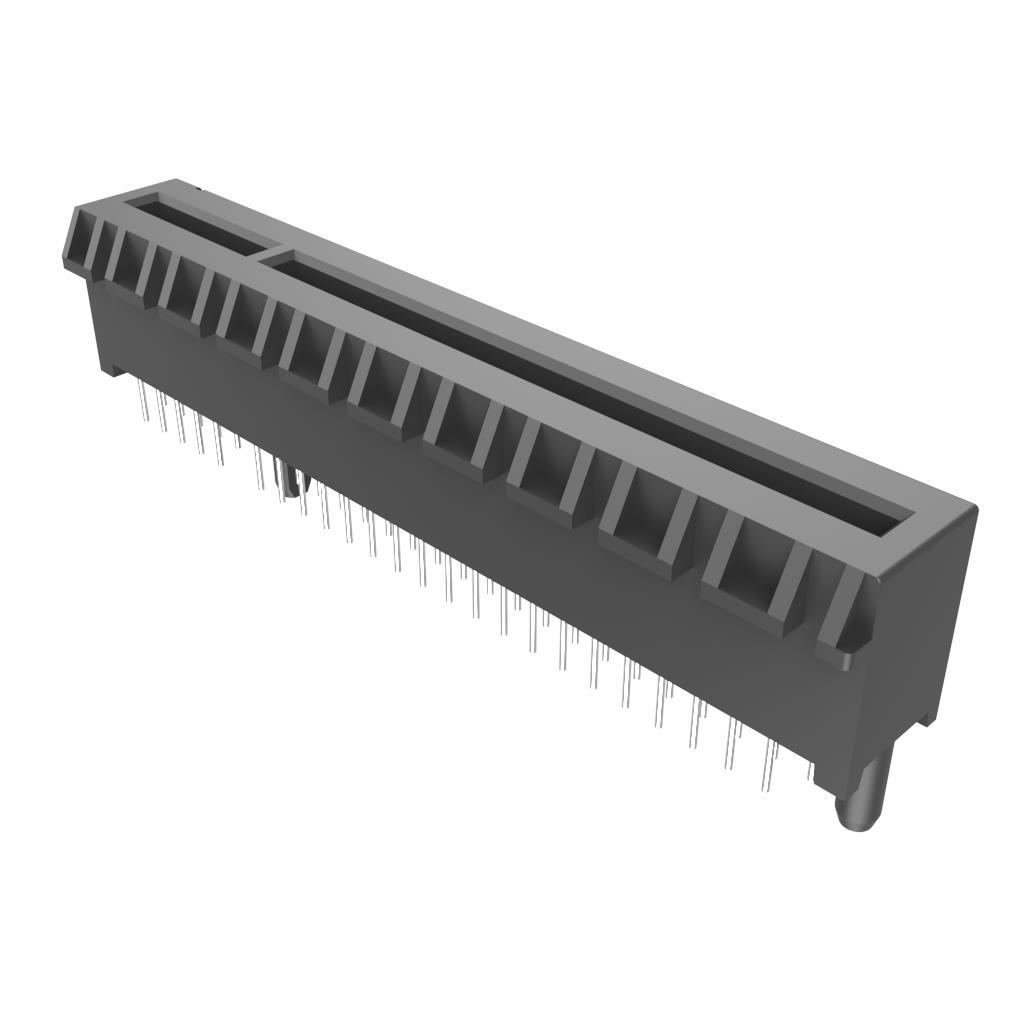

The Amphenol ICC (FCI) part number 10142333-10022MLF is a PCI Express card edge connector designed for vertical through-hole mounting. It features a dual-row female configuration with 98 positions and a pitch of 0.039 inches (1.0 mm). The contacts are gold-plated copper alloy, ensuring reliable signal transmission. This component is specifically engineered for high-speed data applications requiring robust mechanical stability and electrical performance in PCIe Gen 4 environments.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting style for secure board integration
• Dual-row female contact configuration for high-density connections
• Gold-plated contacts to ensure low resistance and corrosion resistance
• Engineered for high-speed PCIe Gen 4 signal integrity

Edgeboard Connectors Applications

• PCI Express Gen 4 expansion cards
• High-performance computing hardware
• Server and storage backplanes
• Industrial automation control boards

Edgeboard Connectors Procurement Notes

Verify the exact pin count and row configuration against the official datasheet before ordering. Confirm that the vertical orientation matches the PCB layout requirements. Ensure the gold plating specification meets the environmental conditions of the target application. Cross-reference the manufacturer's latest revision notes to avoid obsolete variants.

Edgeboard Connectors Selection Notes

Select this connector when a vertical form factor is required for space-constrained designs. The 1.0 mm pitch allows for higher density compared to standard 2.54 mm headers. Verify that the PCB thickness accommodates the specific termination depth. Consider thermal management requirements if the application involves high current loads alongside data signals.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI PCIe connector family, which is widely used in enterprise and industrial computing. It complements other horizontal and right-angle variants within the same series. The design focuses on maintaining signal integrity at high frequencies while providing durable mechanical locking capabilities for repeated insertion cycles.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 98-position count, 0.039-inch pitch, and vertical through-hole termination. Verify compatibility with existing PCB footprints and mating card dimensions. Check for equivalent gold plating thickness and material specifications to ensure identical electrical performance.
