10142333-10023MLF

Edgeboard Connectors Overview

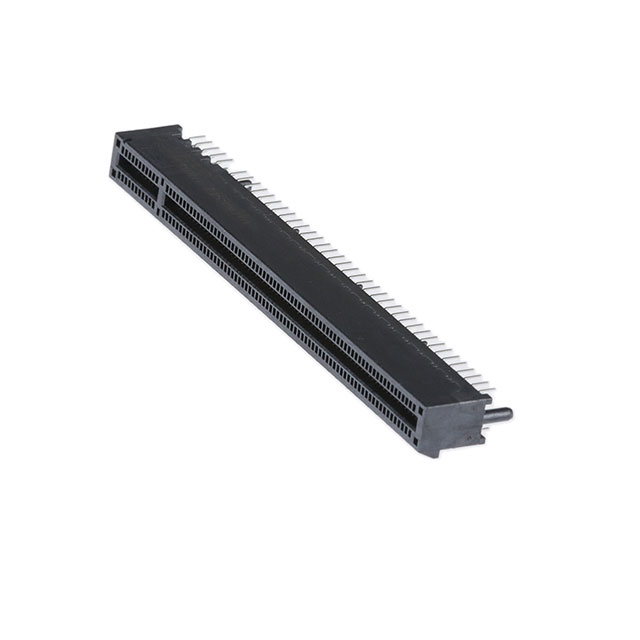

The Amphenol ICC (FCI) 10142333-10023MLF is a PCI Express female edgeboard connector designed for high-speed data transmission. It features 164 positions with a 0.039-inch (1.00mm) pitch, ensuring precise alignment and signal integrity. The connector utilizes gold-plated contacts to provide reliable conductivity and corrosion resistance over repeated mating cycles. Constructed with a black thermoplastic housing, it supports vertical through-hole mounting on printed circuit boards. This component is engineered to meet the rigorous electrical and mechanical requirements of modern computing systems.

Edgeboard Connectors Feature Summary

• Gold-plated contact surfaces ensure low insertion force and stable electrical performance
• Vertical through-hole termination facilitates secure PCB integration
• Black thermoplastic insulation provides structural stability and UL compliance

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-performance server motherboards
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify that the specific suffix '10023MLF' matches the required plating thickness and material specifications for your design. Confirm RoHS compliance status and check for any recent Product Change Notifications from Amphenol ICC. Ensure the supplier provides original manufacturer documentation to validate authenticity before procurement.

Edgeboard Connectors Selection Notes

Select this model when a 164-position interface with a 1.00mm pitch is required for PCI Express applications. Consider the vertical orientation and through-hole mounting style for board-to-edgeboard connections. Evaluate the gold plating requirement against environmental conditions to ensure long-term reliability in the target assembly.

Edgeboard Connectors Part Context

This component belongs to the Amphenol ICC (FCI) card edge connector family, specifically tailored for PCI Express standards. As part of the broader FCI portfolio acquired by Amphenol, it leverages established engineering for signal integrity and mechanical durability in dense electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes include the 10142333-10033MLF variant. Verify pin count, pitch, and mounting configuration compatibility before swapping components to maintain system integrity.
