10142333-10033MLF

Edgeboard Connectors Overview

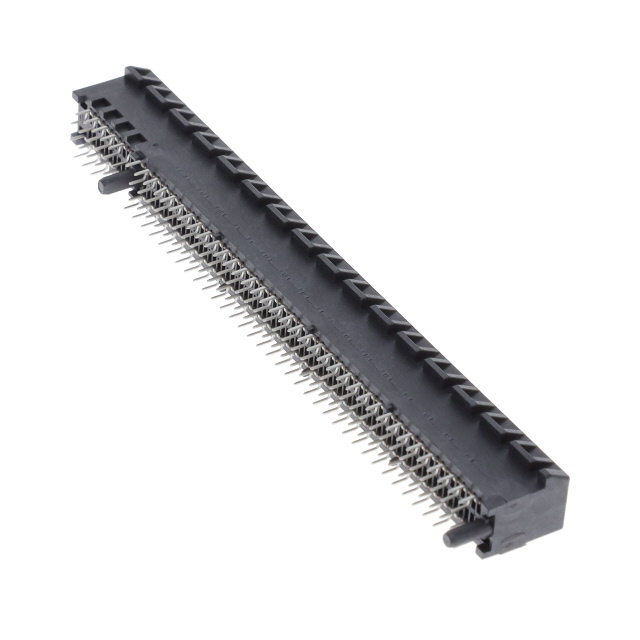

The 10142333-10033MLF is a PCI Express Gen 4 card edge connector manufactured by Amphenol ICC (FCI). It features a vertical through-hole mounting style with 164 positions and a 1.0 mm pitch. The contacts are gold-plated copper alloy, designed for high-speed data transmission. The component utilizes mounting pegs for secure installation and is rated for standard operating temperatures.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen 4 interface specifications
• Vertical through-hole termination for PCB integration
• Gold-plated contacts ensure reliable signal integrity
• Includes mounting pegs for mechanical stability

Edgeboard Connectors Applications

• High-performance computing systems requiring PCIe Gen 4 expansion
• Server backplanes and storage arrays
• Industrial automation control boards
• Network infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the current lifecycle status before procurement, as official sources indicate this product may be obsolete or subject to discontinuation. Confirm availability with authorized distributors, as stock levels may be limited or unavailable in certain regions. Ensure that the specific MLF suffix matches the required plating and packaging specifications for your design.

Edgeboard Connectors Selection Notes

Select this connector when designing for PCI Express Gen 4 applications requiring a 164-position vertical interface. The 1.0 mm pitch allows for compact board layouts compared to larger pitch alternatives. Ensure the target PCB thickness accommodates the through-hole pins and that the mounting peg holes align with the board layout for proper retention.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI interconnect portfolio, specifically within the PCI Express / PCI connector category. It serves as a critical interface between the motherboard and peripheral cards, facilitating high-bandwidth data transfer. The part number identifies a specific configuration within the broader family of card edge connectors offered by the manufacturer.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the potential obsolescence status indicated in source materials, direct replacements should be verified through official manufacturer channels or engineering change notices.
