10142333-10111MLF

Edgeboard Connectors Overview

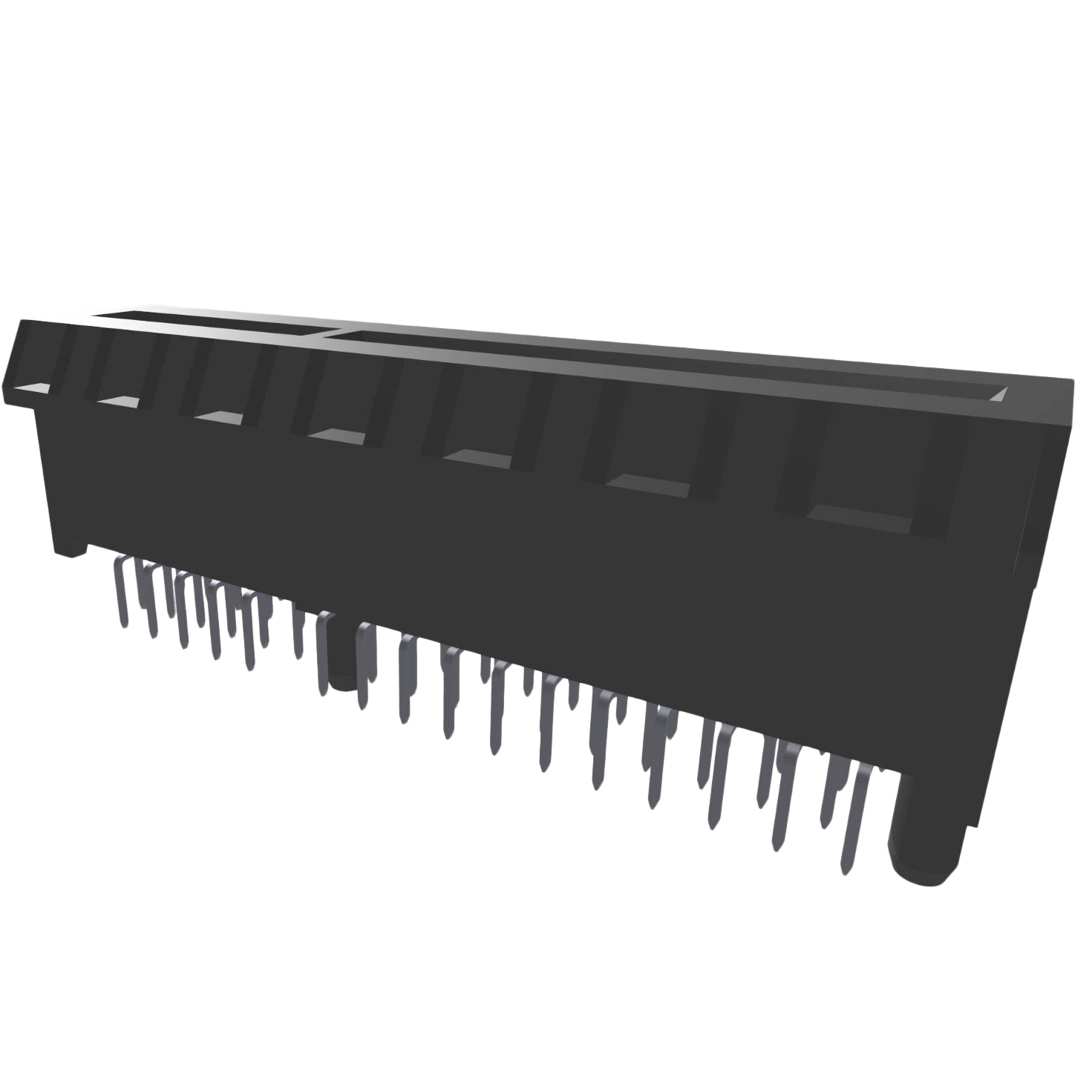

The 10142333-10111MLF is a PCI Express female card edge connector manufactured by Amphenol ICC (FCI). It features 64 positions with a 0.039-inch (1.00mm) pitch. The connector utilizes gold contact plating and is designed for vertical through-hole mounting. Key structural elements include board guide slots and locking ramps to ensure secure installation and alignment during assembly.

Edgeboard Connectors Feature Summary

• Incorporates integrated board guide slots for precise alignment during insertion
• Features locking ramp mechanisms to secure the connector to the host board
• Supports automated pick-and-place manufacturing processes

Edgeboard Connectors Applications

• PCI Express peripheral interface connections
• High-speed data transmission modules
• Computer hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix 'MLF' against the manufacturer's current datasheet to confirm material composition and lead-free status. Ensure compatibility with the target PCB stack-up height and mating card thickness before procurement. Cross-reference the pin count and pitch requirements with system design specifications to prevent mechanical interference.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-density connection is required for PCI Express applications. The 1.00mm pitch allows for compact board layouts compared to standard 0.100-inch spacing connectors. Consider the vertical orientation and through-hole termination method for robust mechanical stability in stationary equipment.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI card edge connector family, specifically engineered for PCI Express standards. It serves as a critical interface between the motherboard and expansion cards, facilitating reliable electrical connectivity for high-bandwidth data transfer in computing environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 64-position count, 0.039-inch pitch, and female gender. Verify that alternative parts support the same vertical mounting style and include compatible locking mechanisms. Ensure the replacement maintains identical gold plating specifications for signal integrity.
