Edgeboard Connectors Overview

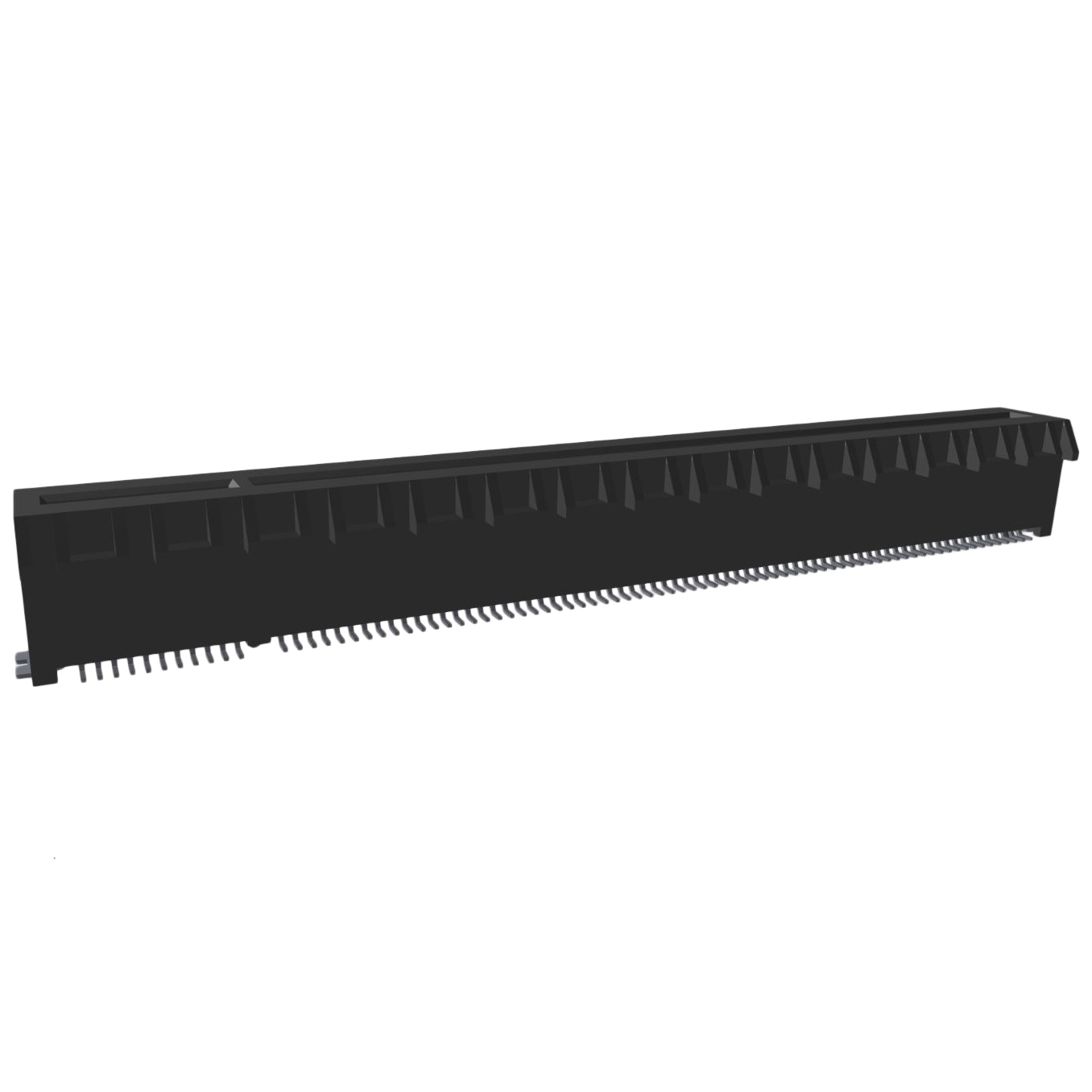

The 10144667-113Q0LF is a PCI Express vertical card edge connector manufactured by Amphenol ICC (FCI). It features 164 positions with a 1.00mm (0.039 inch) pitch. The connector utilizes gold plating for contact surfaces and includes a black housing. Designed for surface mount assembly, this component supports high-density interconnect applications requiring reliable signal transmission in PCIe systems.

Edgeboard Connectors Feature Summary

• Vertical card edge configuration for PCB integration
• Gold-plated contacts for enhanced conductivity
• 1.00mm pitch for high-density positioning

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-speed data interface modules
• Server expansion boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix Q0 against the manufacturer's current datasheet to confirm housing color and plating specifications. Ensure compatibility with the target PCB footprint and mating card thickness before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical form factor is required for PCIe interfaces. The 164-position count and 1.00mm pitch define the electrical and mechanical constraints. Confirm that the board layout accommodates the vertical height and solder termination requirements.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI PCI Express connector family. It serves as a critical interface between the motherboard and expansion cards. The model number indicates specific pin counts and physical dimensions within the broader product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes include the 10144667-112Y0LF, which shares the same series but differs in position count. Verify mechanical fit and electrical continuity before swapping components.
