Edgeboard Connectors Overview

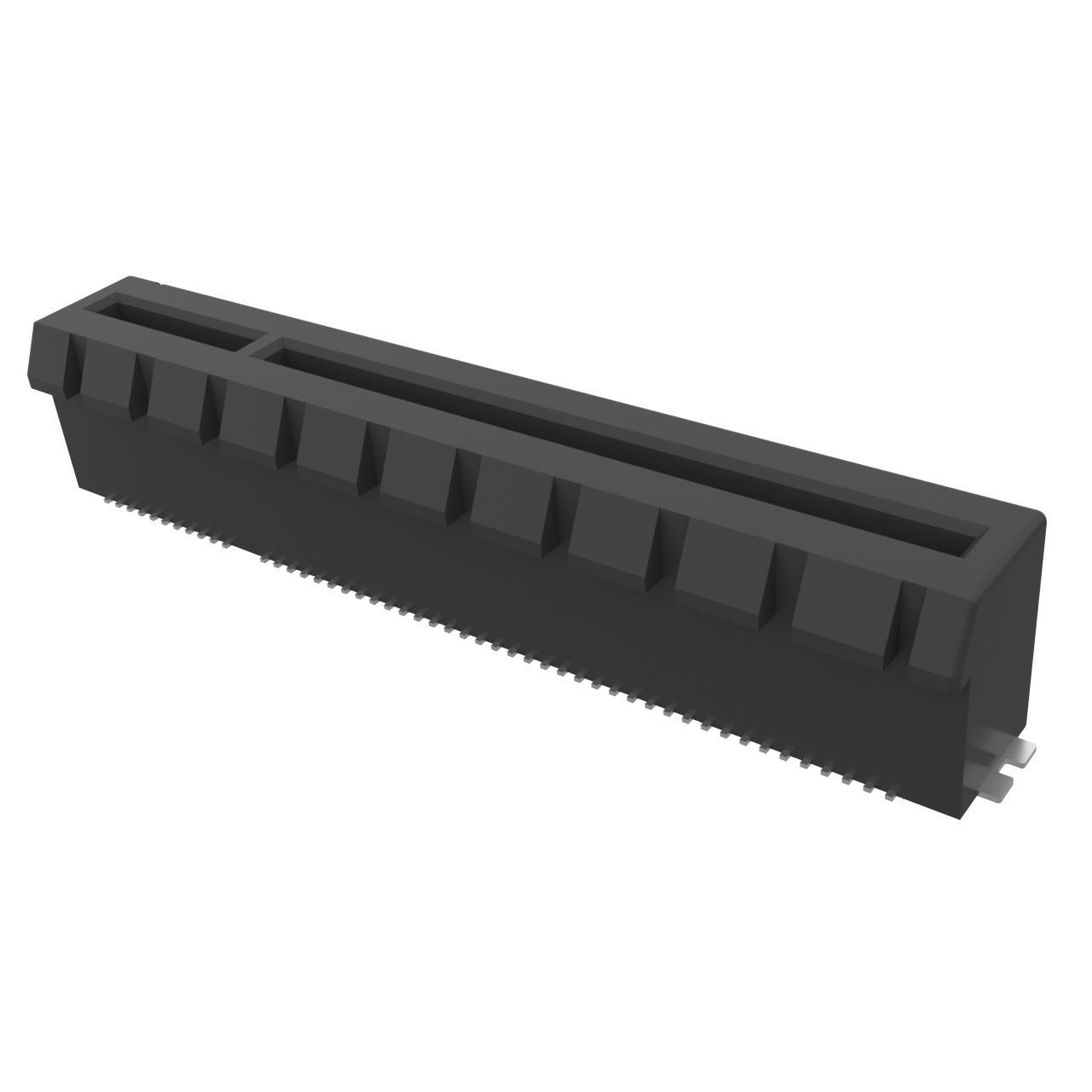

The Amphenol ICC (FCI) model 10146065-112Q0LF is a PCI Express vertical card edge connector featuring 164 positions with a 1mm pitch. It utilizes gold contact finish and copper alloy contacts housed in liquid crystal polymer. The component supports a current rating of 1.1 A and operates within a temperature range of -55°C to +85°C, rated for 300 V.

Edgeboard Connectors Feature Summary

• Vertical card edge interface designed for PCI Express applications
• Gold-plated copper alloy contacts for reliable signal transmission
• Liquid crystal polymer housing for thermal stability

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-density electronic interconnect systems
• Industrial computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix 'Q0' against official Amphenol documentation to confirm material composition and plating specifications. Ensure compatibility with standard PCI Express card thickness requirements before integration into the design.

Edgeboard Connectors Selection Notes

Select this component for vertical mounting configurations requiring high pin counts. Confirm that the 1mm pitch aligns with the target PCB layout constraints and that the operating temperature range meets the environmental demands of the intended application.

Edgeboard Connectors Part Context

This connector belongs to the PCI Express / PCI Connectors category under the Amphenol FCI brand. It serves as a critical interface for connecting expansion cards to motherboards or backplanes in data communication and commercial electronics markets.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for compatible alternatives. Verify mechanical dimensions and electrical ratings match exactly when substituting.
