Edgeboard Connectors Overview

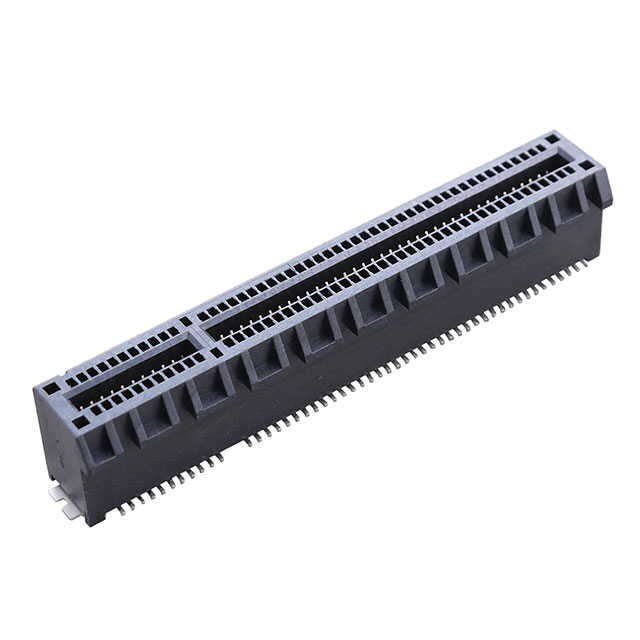

The Amphenol ICC (FCI) 10146065-112Y0LF is a PCI Express vertical card edge connector designed for high-speed data transmission. It features 98 positions with a 1mm pitch, supporting PCIe Gen 4 applications. The component utilizes surface mount technology for secure board attachment and employs gold-plated contacts to ensure reliable signal integrity. This black housing connector is engineered for robust performance in demanding electronic environments.

Edgeboard Connectors Feature Summary

• Supports PCIe Gen 4 high-speed data transmission standards
• Vertical orientation with surface mount termination
• Gold-plated contacts for enhanced signal reliability

Edgeboard Connectors Applications

• PCI Express expansion cards
• High-performance computing systems
• Server backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official documentation to confirm pin configuration and plating specifications. Ensure compatibility with target PCB stack-up requirements before procurement. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference datasheet revisions to validate material changes or process updates affecting assembly.

Edgeboard Connectors Selection Notes

Select this connector when vertical mounting is required for PCIe Gen 4 interfaces. Verify that the 1mm pitch aligns with existing board layout constraints. Ensure the 98-position count matches the circuit design requirements. Confirm that the surface mount package type suits the manufacturing capabilities of the production facility.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI PCI Express connector family, which provides interconnect solutions for next-generation computing platforms. The series supports evolving bandwidth demands through optimized contact geometry and material selection. It integrates into broader system architectures requiring stable high-frequency connections.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify mechanical dimensions and electrical characteristics match before swapping components.
