10146065-112Y1LF

Edgeboard Connectors Overview

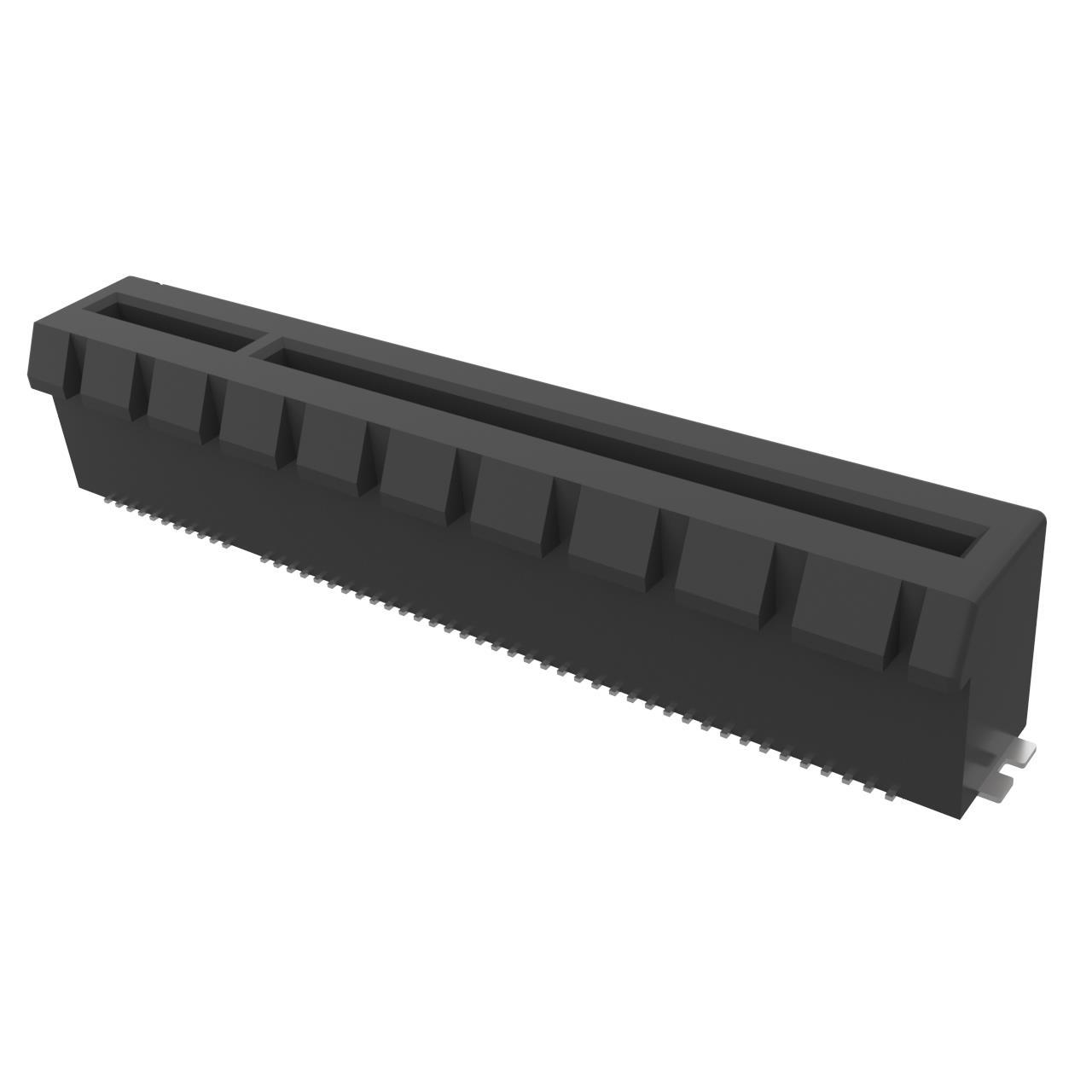

The Amphenol ICC (FCI) part number 10146065-112Y1LF is a PCI Express vertical card edge connector featuring 98 positions. It utilizes a 1mm (0.039 inch) pitch for signal transmission. The component employs surface mount technology (SMD/SMT) for board attachment and operates with a current rating of 1.1 A. Contact materials consist of copper alloy with gold plating, while the housing is constructed from thermoplastic (TP). This connector is designed for high-density applications requiring reliable vertical mating interfaces.

Edgeboard Connectors Feature Summary

• Vertical card edge design optimized for PCI Express slot integration
• Gold-plated copper alloy contacts ensure stable signal integrity
• Surface mount termination facilitates automated PCB assembly processes

Edgeboard Connectors Applications

• PCI Express expansion slots in computer systems
• High-speed data transmission modules
• Industrial computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix Y1 against official Amphenol documentation to confirm material and plating specifications. Ensure compatibility with existing PCB footprint requirements before ordering. Cross-reference the 98-position count with system design constraints. Confirm RoHS compliance status through the manufacturer's latest datasheet release.

Edgeboard Connectors Selection Notes

Select this connector when a vertical orientation is required for PCI Express applications. The 1mm pitch supports dense pin arrangements within limited board areas. Verify that the 1.1 A current rating meets the power distribution needs of the target circuitry. Ensure the SMD mounting style aligns with the manufacturing capabilities of the production facility.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI PCI Express connector family, which provides standardized interfaces for high-speed peripheral connections. The brand transition from FCI to Amphenol ICC maintains continuity in connector engineering standards. This specific model represents a standard vertical configuration widely used in desktop and server motherboard designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 98-position count, 1mm pitch, and vertical orientation. Verify equivalent contact plating and housing material properties. Consult Amphenol official cross-reference lists for approved alternative part numbers with identical mechanical and electrical characteristics.
