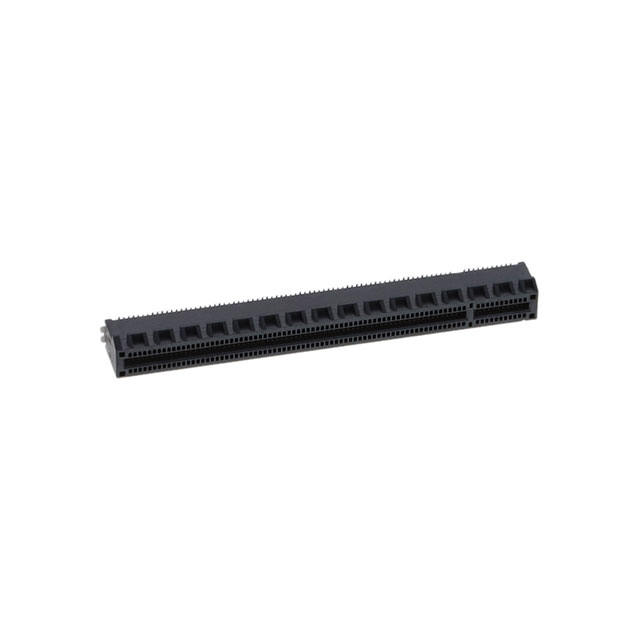

10146065-113Q0LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 164POS 0.039. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 10146065-113Q0LF
- Description：CONN PCI EXP FMALE 164POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：164
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：-
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 105°C
Edgeboard Connectors datasheet and documents for 10146065-113Q0LF
Edgeboard Connectors Overview
The Amphenol ICC (FCI) model 10146065-113Q0LF is a PCI Express vertical card edge connector featuring 164 positions with a 1mm pitch. It utilizes SMD/SMT termination and includes mounting pegs for secure installation. The connector operates within a temperature range of -55°C to +85°C, supports up to 300V voltage and 1.1A current, and is constructed from Liquid Crystal Polymer (LCP).
Edgeboard Connectors Feature Summary
- Vertical orientation design for direct board integration.
- Gold-plated copper alloy contacts ensure reliable signal transmission.
- Integrated mounting pegs provide mechanical stability during operation.
Edgeboard Connectors Applications
- PCI Express peripheral interface connections.
- High-density electronic circuit board interconnects.
- Industrial communication equipment modules.
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix Q0LF against official documentation to confirm color and plating specifications. Ensure compatibility with standard PCB layouts requiring vertical mounting pegs. Confirm that the 1mm pitch aligns with target card edge dimensions before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a vertical form factor is required for high-density signal routing. The LCP housing offers thermal stability suitable for reflow soldering processes. Verify that the 1.1A current rating meets the power requirements of the connected application circuits.
Edgeboard Connectors Part Context
This part belongs to the Amphenol FCI PCI Express connector family, designed for robust data transfer in commercial electronics. It complements other vertical connectors by providing stable mechanical support through integrated pegs while maintaining electrical integrity across various industrial environments.
Edgeboard Connectors Replacement Considerations
The part number 10146065-123Y0LF serves as a verified substitute option within the same product line. Both variants share identical positioning and pitch specifications, ensuring functional interchangeability in compatible designs.
