10146065-113Y0LF

Edgeboard Connectors Overview

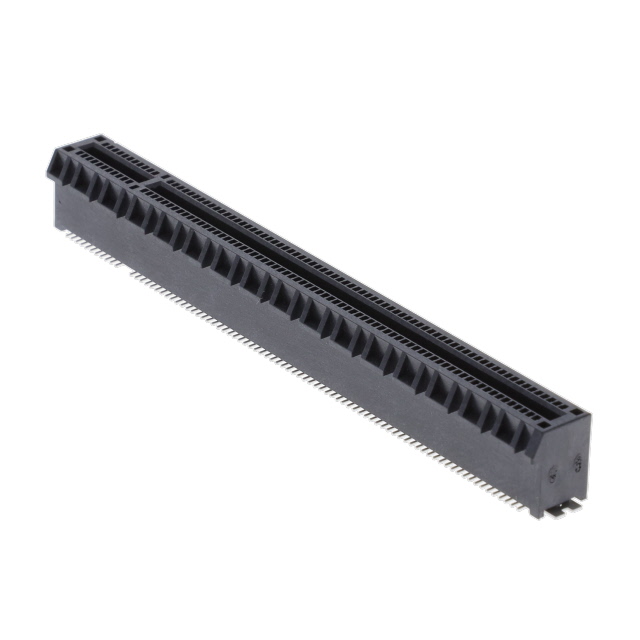

The Amphenol ICC (FCI) 10146065-113Y0LF is a PCI Express vertical card edge connector featuring 164 positions with a 1mm pitch. It utilizes SMD/SMT termination and copper alloy contacts with gold plating. The housing is constructed from Liquid Crystal Polymer (LCP), rated for currents up to 1.1 A and voltages up to 300 V. Operating temperatures range from -55 C to +85 C, supporting all generations of PCI Express signaling in desktop PCs, workstations, and servers.

Edgeboard Connectors Feature Summary

• Enables all generations of PCI Express signaling
• Vertical mounting peg installation style
• Gold-plated copper alloy contacts

Edgeboard Connectors Applications

• Desktop PC motherboard connections
• Workstation expansion slots
• Server backplane interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix '113Y0LF' against official Amphenol FCI documentation to confirm exact contact configuration and material specifications. Ensure compatibility with existing PCB layout requirements and thermal management strategies during integration planning.

Edgeboard Connectors Selection Notes

Select this component for high-density PCI Express applications requiring vertical board-to-board or board-to-card connectivity. Confirm that the 1mm pitch and 164-position count align with system design constraints and signal integrity requirements.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol FCI PCI Express series, designed for robust data transmission in computing environments. It supports standard PCIe signaling protocols, ensuring reliable performance across various hardware platforms.

Edgeboard Connectors Replacement Considerations

Consult official Amphenol FCI substitution lists for verified equivalent part numbers. Do not assume interchangeability with other pitch sizes or position counts without explicit manufacturer confirmation.
