10146067-110C0LF

$2.08

Description：CONN PCI EXP FMALE 36POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:3d27f72d0309 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10146067-110C0LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 36POS 0.039. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10146067-110C0LF

Description：CONN PCI EXP FMALE 36POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：36
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Pick and Place, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 105°C

Edgeboard Connectors datasheet and documents for 10146067-110C0LF

10146067-110C0LF

Edgeboard Connectors Overview

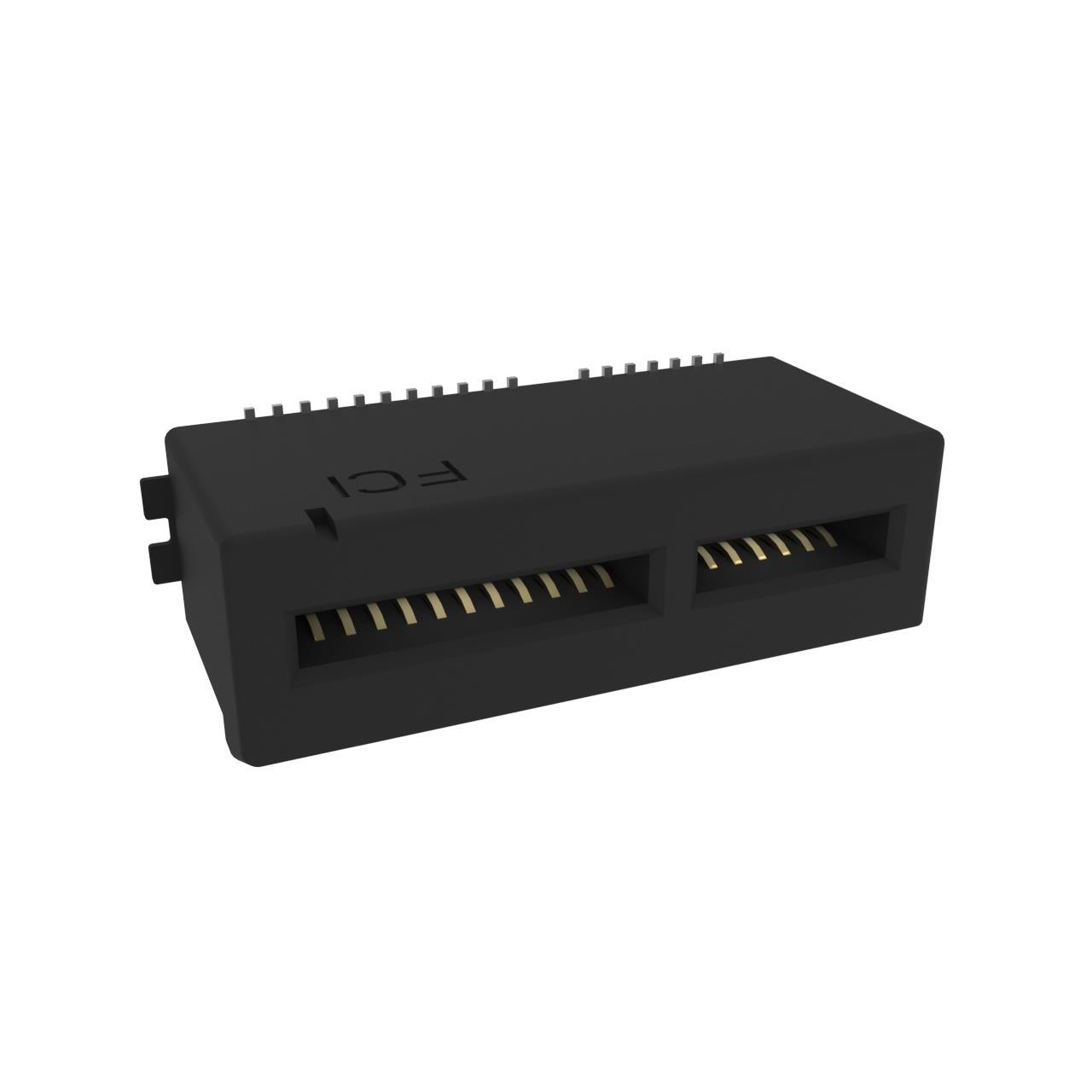

The 10146067-110C0LF is a PCI Express vertical card edge connector manufactured by Amphenol ICC (FCI). It features 36 positions with a 1mm (0.039 inch) pitch. The component is designed for surface mount installation and utilizes gold-plated contacts to ensure reliable signal transmission in high-speed applications.

Edgeboard Connectors Feature Summary

Vertical card edge design optimized for PCI Express slot integration
Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
Compact 1mm pitch configuration supporting dense circuit board layouts

Edgeboard Connectors Applications

PCI Express expansion slots
High-speed data interface cards
Computer peripheral hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm pin count, pitch, and termination style match project requirements. Confirm RoHS compliance status through current datasheets as specifications may be subject to revision. Ensure compatibility with mating card thickness and insertion force limits defined in the mechanical drawings.

Edgeboard Connectors Selection Notes

Select this connector when a vertical PCI Express interface with a 1mm pitch is required. Evaluate the 36-position capacity against signal line requirements. Consider the surface mount orientation for PCB assembly constraints. Verify that the gold plating meets the environmental durability standards of the target application environment.

Edgeboard Connectors Part Context

This component belongs to the PCI Express / PCI Connectors product category under Amphenol FCI. It is classified as a card edge connector designed for robust electrical connections in computing infrastructure. The part represents standard interconnect solutions for modern electronic systems requiring high-density signal paths.
