10146070-123Y0LF

Edgeboard Connectors Overview

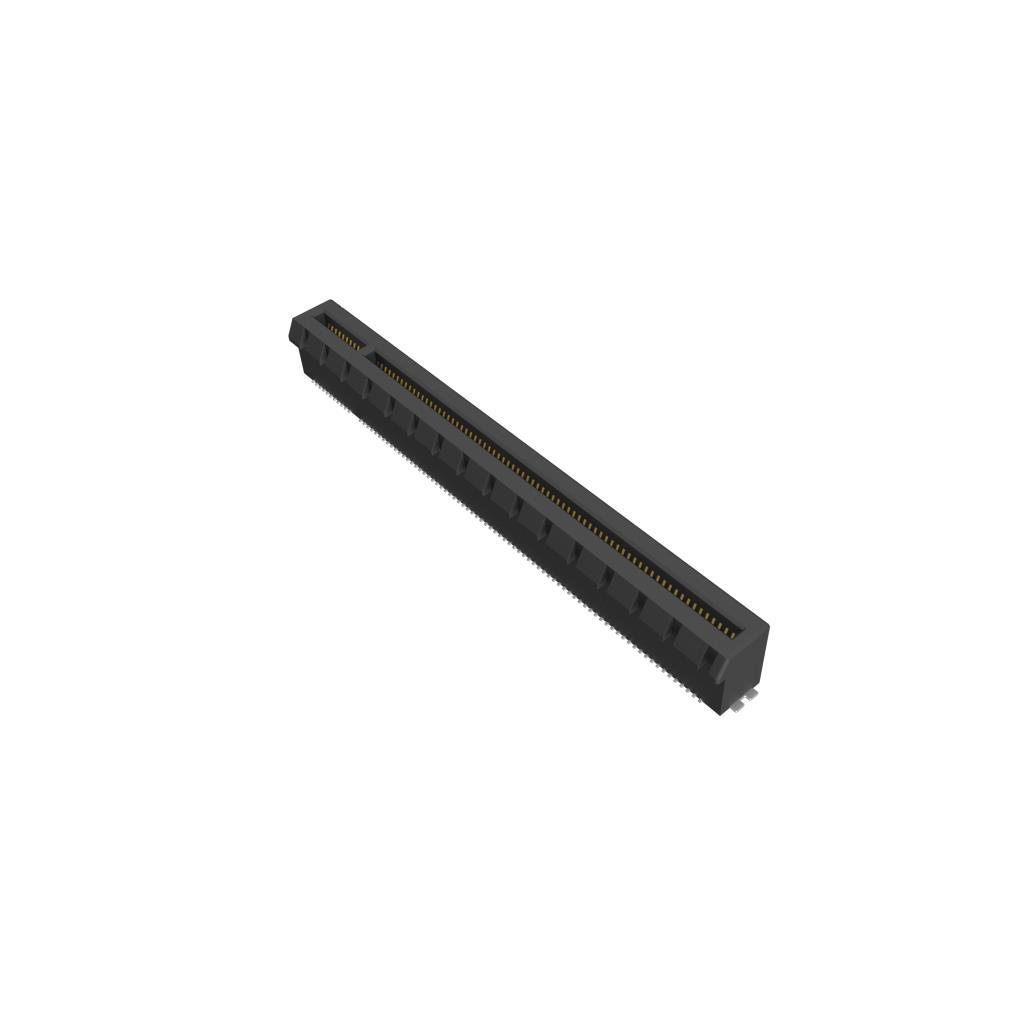

The Amphenol ICC (FCI) 10146070-123Y0LF is a PCI Express vertical card edge connector designed for surface mount technology. It features 164 positions with a 1mm pitch, suitable for high-speed data transmission applications. The connector utilizes gold-plated copper alloy contacts to ensure reliable electrical performance and durability. Constructed with thermoplastic housing, it supports secure mating with compliant card edges in electronic systems requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Vertical orientation design for space-efficient board integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Surface mount termination for automated assembly compatibility

Edgeboard Connectors Applications

• PCI Express peripheral interface modules
• High-density server backplane connections
• Industrial control system expansion cards

Edgeboard Connectors Procurement Notes

Verify the specific suffix Y0LF against official datasheets to confirm plating thickness and material specifications. Ensure compatibility with existing PCB footprint designs and reflow soldering profiles. Cross-reference the manufacturer's latest documentation for any updates on RoHS compliance status or recommended mating force parameters prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a vertical form factor is required for PCI Express implementations. Evaluate the 164-position count against signal integrity requirements and available board real estate. Confirm that the surface mount package aligns with the manufacturing capabilities of the assembly facility and matches the thermal profile constraints of the production environment.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI PCI Express connector family, which provides standardized interconnect solutions for next-generation computing architectures. The series emphasizes signal integrity and mechanical reliability for high-bandwidth applications. Components within this line are engineered to meet rigorous industry standards for performance and longevity in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for equivalent parts with identical pin counts and mounting styles. Verify that alternative connectors maintain the same 1mm pitch and vertical orientation to ensure mechanical fit without redesigning the host board layout.
