10147875-001LF

Edgeboard Connectors Overview

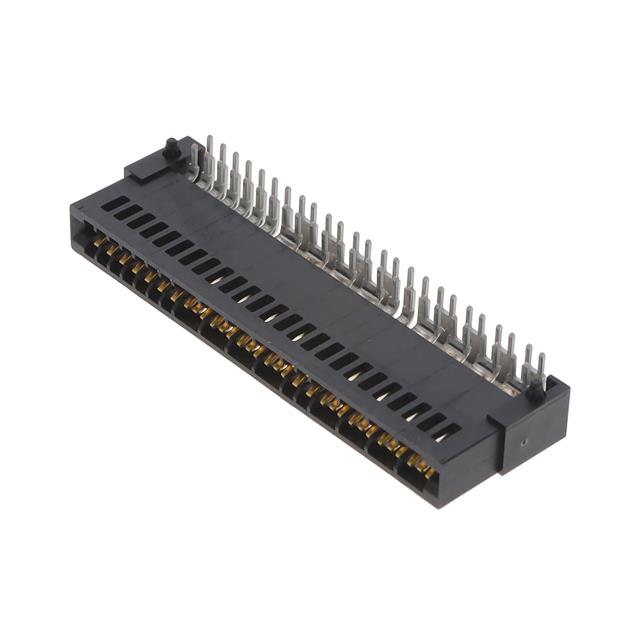

The Amphenol ICC (FCI) 10147875-001LF is a standard card edge connector designed for through-hole, right-angle mounting. It features a 34-position configuration with dual-edge contact interfaces. The contacts are constructed from copper alloy and finished with gold or Gold GXT™ plating to ensure reliable signal transmission. This component utilizes a solder termination method for secure PCB attachment.

Edgeboard Connectors Feature Summary

• Dual-edge contact interface design for robust connection
• Gold or Gold GXT™ contact finish for durability
• Right-angle through-hole mounting configuration

Edgeboard Connectors Applications

• High-density electronic circuit board interconnections
• Industrial control system module connections
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific contact finish variant required, as the part number may denote either standard gold or Gold GXT™ plating depending on the manufacturing revision. Confirm that the right-angle through-hole form factor aligns with the mechanical constraints of the target assembly. Ensure compatibility with the mating card edge thickness specifications defined in the official datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-edge card edge solution is required for right-angle PCB integration. The choice depends on the need for durable gold-plated contacts in industrial or telecommunications environments. Verify that the through-hole mounting style suits the board layout and that the 34-position count matches the signal requirements of the application design.

Edgeboard Connectors Part Context

This connector belongs to the EHPCE RA series within the Amphenol ICC portfolio. It serves as a standard card edge interface component, distinct from surface mount or single-edge variants. The product line focuses on providing reliable interconnect solutions for high-performance applications requiring durable mechanical and electrical connections.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verifying identical pin count, mounting style, and contact finish specifications against the original design requirements.
