Edgeboard Connectors Overview

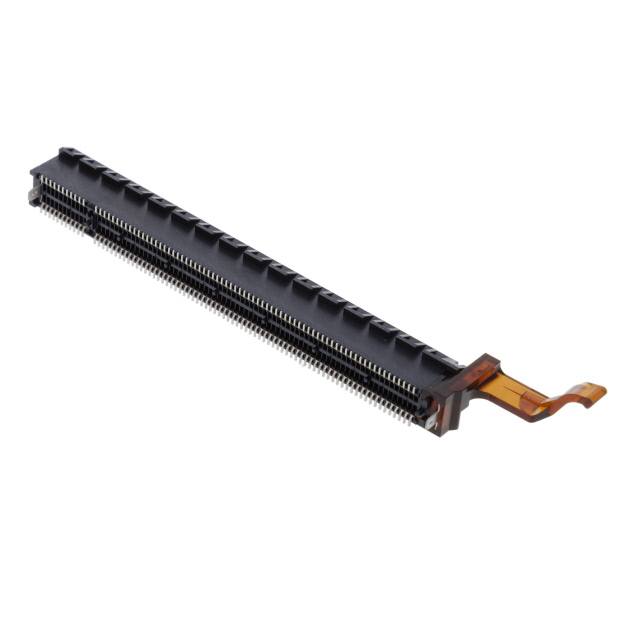

The Amphenol ICC (FCI) part number 10150775-113Y0LF is a PCI Express vertical card edge connector designed for high-speed data transmission applications. This component features 164 positions arranged in a dual-row configuration, providing robust connectivity for peripheral cards. The connector utilizes a precise 1.00mm (0.039 inch) pitch to ensure reliable signal integrity across the interface. Constructed with a black housing and gold-plated contacts, it supports female mating interfaces suitable for standard PCIe slot implementations.

Edgeboard Connectors Feature Summary

• Vertical card edge design optimized for direct board mounting
• Gold-plated contact surfaces ensuring durable electrical performance
• Dual-row architecture supporting 164 distinct connection points

Edgeboard Connectors Applications

• PCI Express peripheral card interconnects
• High-speed data transmission modules
• Computer hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm plating specifications and housing color. Ensure compatibility with existing PCB footprint requirements before procurement. Confirm that the selected variant matches the required pin count and pitch for the target application.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation is required for PCI Express integration. The 1.00mm pitch accommodates dense circuit layouts while maintaining signal integrity. Verify that the host system supports the physical dimensions and electrical characteristics defined by the PCIe standard.

Edgeboard Connectors Part Context

This connector belongs to the Amphenol ICC portfolio of edgeboard solutions. It serves as a critical interface between motherboard systems and add-on cards. The design adheres to industry standards for mechanical stability and electrical reliability in computing environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 164-position count, 1.00mm pitch, and vertical form factor. Verify pinout compatibility and mechanical retention features before considering alternative manufacturers.
