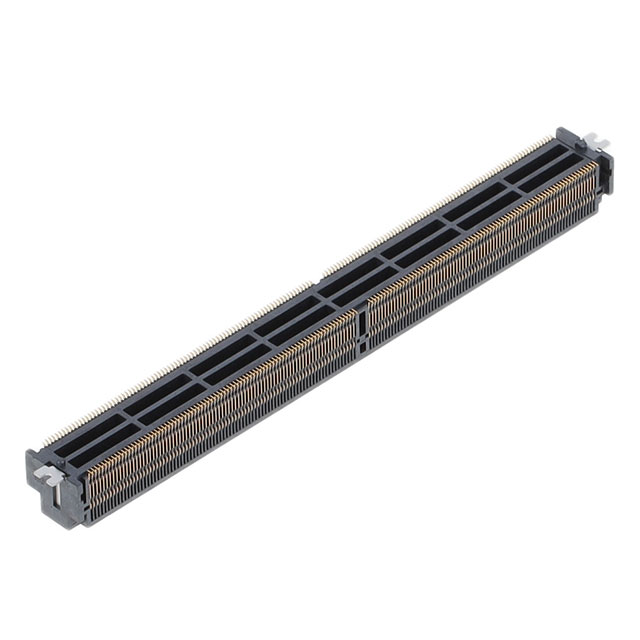

10151114-001TLF

$13.28

Description：CONN PCI EXP FMALE 314POS 0.020
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:72b6ff98b2cf Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10151114-001TLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN PCI EXP FMALE 314POS 0.020. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10151114-001TLF

Description：CONN PCI EXP FMALE 314POS 0.020
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：314
Card Thickness：0.047" (1.20mm)
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide, Solder Retention
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 10151114-001TLF

10151114-001TLF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) 10151114-001TLF is a high-density MXM 3.0 edgeboard connector designed for surface mount technology. It features a right-angle configuration with 314 positions and a 0.020-inch (0.50mm) pitch. The connector utilizes gold contact finishes to ensure reliable signal integrity in demanding applications. With a stack height of 0.50mm, it supports compact board-to-board interconnections.

Edgeboard Connectors Feature Summary

Right-angle surface mount design for space-constrained layouts
Gold-plated contacts for enhanced conductivity and corrosion resistance
MXM 3.0 standard compatibility for modular graphics systems

Edgeboard Connectors Applications

Mobile graphics modules
High-performance computing edgeboards
Compact server architectures

Edgeboard Connectors Procurement Notes

Verify the specific suffix 'TLF' against official Amphenol documentation to confirm lead-free compliance and packaging specifications. Ensure the right-angle orientation matches the PCB footprint requirements. Cross-reference the 314-position count with the mechanical drawing to prevent assembly errors during integration.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-pin-count interface is required for MXM form factors. The right-angle SMT style facilitates vertical stacking or side-mounted connections. Evaluate the 0.50mm pitch density against routing constraints and thermal management needs within the host system architecture.

Edgeboard Connectors Part Context

This part belongs to the MXM series by Amphenol ICC (FCI), formerly FCI. The series targets mobile and embedded graphics solutions requiring robust electrical performance. The manufacturer integrates advanced plating technologies to support signal integrity in high-frequency data transmission environments typical of modern computing hardware.
