10151422-0112110LF

Description：R/A SMT PCIE GEN4
Series：-
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:ee9c8fe672a7 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

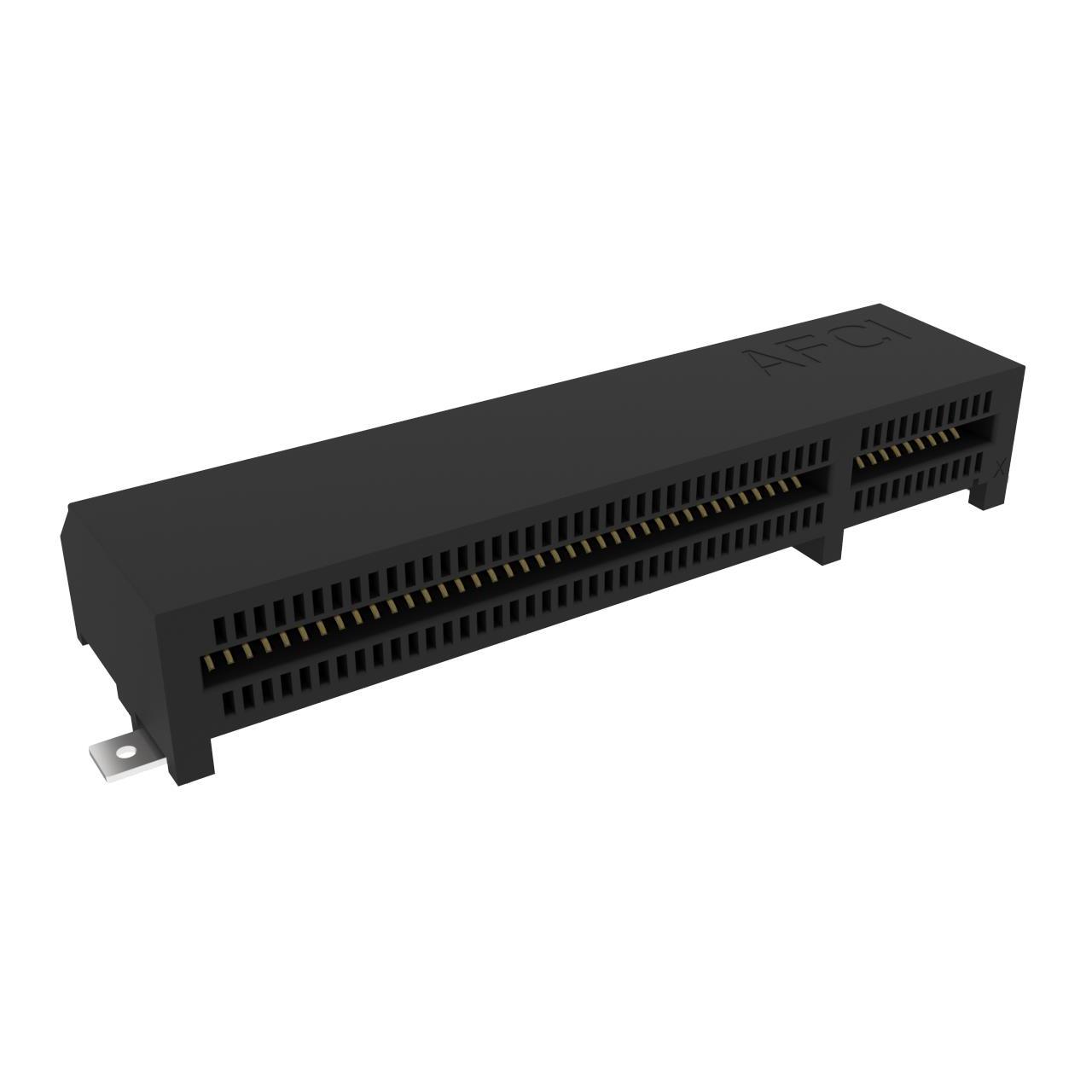

10151422-0112110LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is R/A SMT PCIE GEN4. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10151422-0112110LF

Description：R/A SMT PCIE GEN4
Series：-
Mfr：Amphenol ICC (FCI)
Package：Bulk
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：49
Number of Positions：98
Card Thickness：0.063" (1.60mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 10151422-0112110LF

10151422-0112110LF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) part number 10151422-0112110LF is a PCI Express card edge connector designed for high-speed data transmission. It features a right-angle surface mount configuration with 98 positions and a 1mm pitch. This component supports PCIe Gen4 standards, ensuring signal integrity for modern computing applications. The connector utilizes a board-edge interface to secure expansion cards onto the motherboard.

Edgeboard Connectors Feature Summary

Supports PCIe Gen4 high-speed data transfer protocols
Right-angle surface mount design for compact assembly
98-position interface with 1mm pitch spacing

Edgeboard Connectors Applications

High-performance server motherboards
Graphics processing unit (GPU) expansion slots
Network interface card installations

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official Amphenol documentation to confirm pinout and plating specifications. Ensure compatibility with existing PCB layout requirements regarding right-angle mounting and surface mount technology constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when designing systems requiring PCIe Gen4 compliance and space-constrained right-angle connections. Evaluate thermal management needs due to surface mount placement and ensure the host board supports the specified 1mm pitch geometry for reliable mechanical engagement.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI portfolio, now integrated into Amphenol ICC. The manufacturer specializes in interconnect solutions for information and communication technologies. This specific model addresses the demand for high-density, high-speed connectivity in enterprise and consumer electronics hardware.
