10152083-113T0LF

Edgeboard Connectors Overview

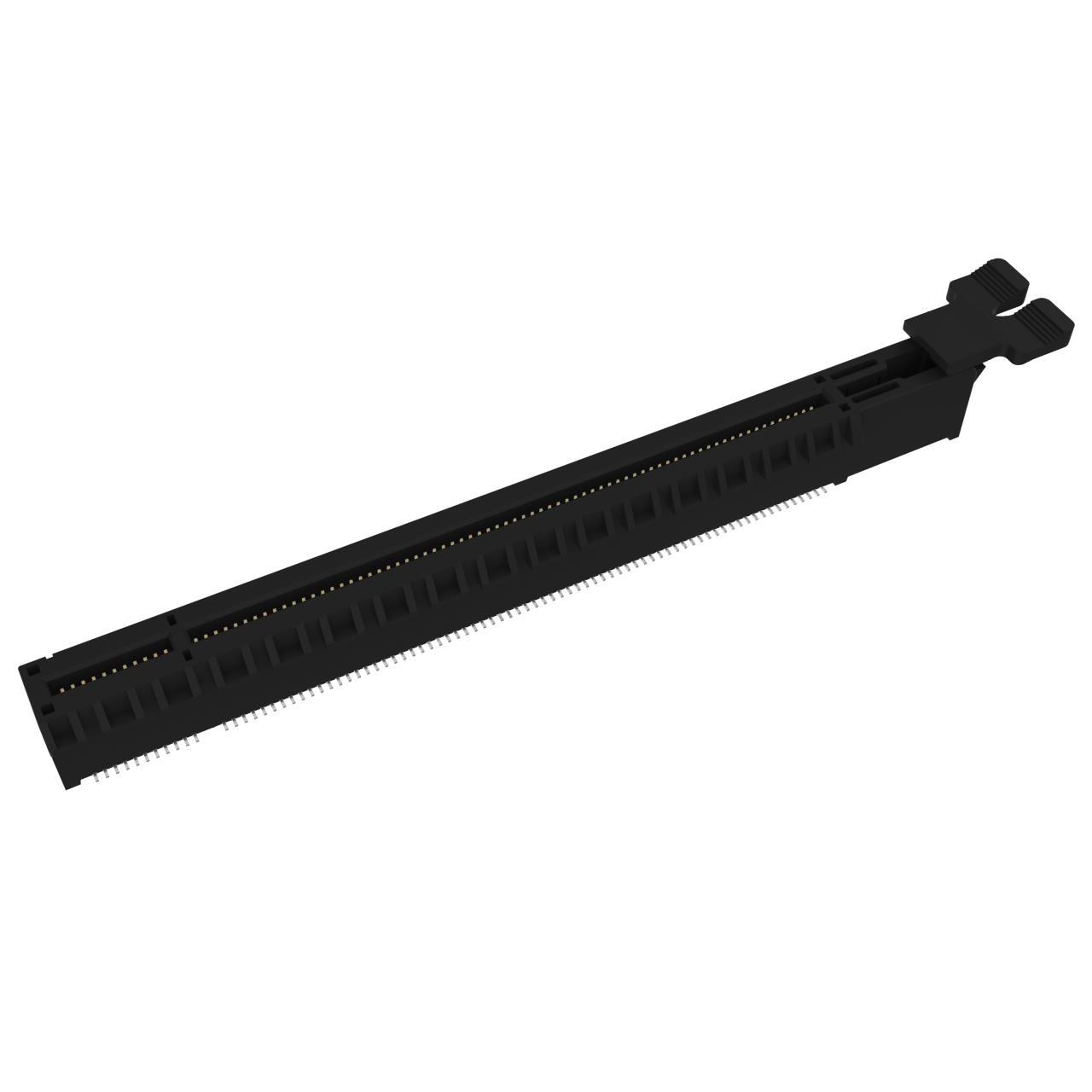

The Amphenol ICC (FCI) 10152083-113T0LF is a dual-edge female connector designed for high-performance computing applications. It features 164 positions, including power contacts, with a 0.039-inch (1.00mm) pitch. The connector utilizes gold contact finish and black GXT thermoplastic insulation. It supports card thicknesses of 0.062 inches (1.57mm) and operates within a temperature range of -55°C to 105°C. This through-hole mounted component belongs to the HPCE series and includes board lock features for secure installation.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supporting both signal and power transmission
• Gold contact finish ensures reliable conductivity and corrosion resistance
• Integrated board lock mechanism provides mechanical stability during operation
• High-density design accommodates 164 positions in a compact footprint

Edgeboard Connectors Applications

• High-performance computing systems
• Server motherboards
• Storage area networks
• Telecommunications infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required card thickness and contact plating specifications. Confirm that the procurement source provides genuine Amphenol ICC products with valid traceability documentation. Check current lead times as manufacturing schedules may vary. Ensure storage conditions comply with moisture sensitivity levels to maintain connector integrity prior to assembly.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with integrated power capabilities is required for high-speed data transmission. Consider the 1.00mm pitch and 164-position count against available PCB real estate. Evaluate the through-hole mounting style against surface-mount alternatives if space constraints exist. Verify that the operating temperature range meets the environmental requirements of the target application.

Edgeboard Connectors Part Context

This component is part of the HPCE series from Amphenol ICC, targeting demanding computing environments. It complements other edge connectors in the portfolio by offering combined signal and power routing in a single dual-edge format. The series emphasizes reliability and high-density interconnect solutions for next-generation hardware architectures.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
