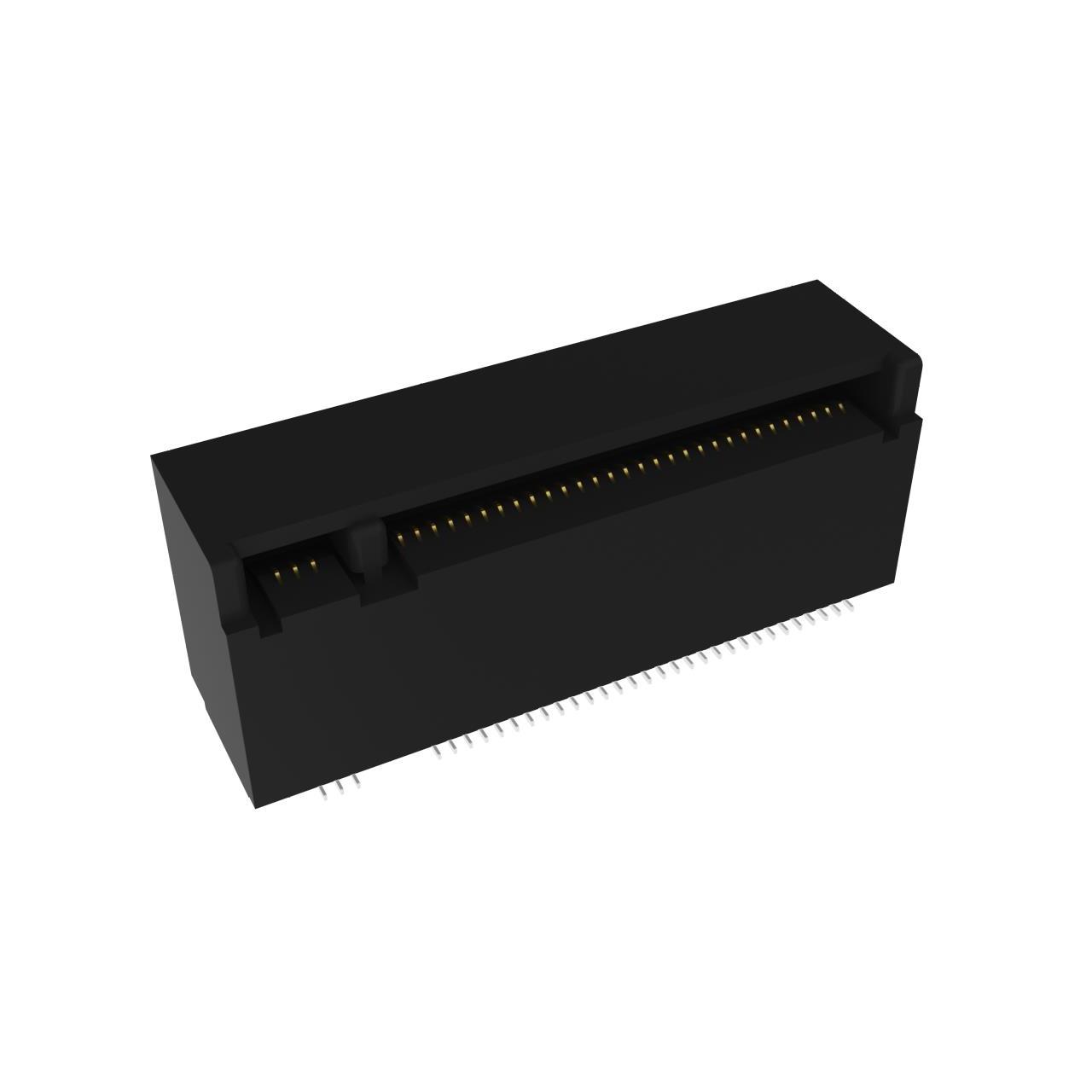

10154478-067R2BLF

Description：M.2 8.5H STD B
Series：M.2
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:c6f7558cde16 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10154478-067R2BLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is M.2 8.5H STD B. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10154478-067R2BLF

Description：M.2 8.5H STD B
Series：M.2
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：0.031" (0.79mm)
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide, Keyed B
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 10154478-067R2BLF

10154478-067R2BLF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) part number 10154478-067R2BLF is a PCIe M.2 connector belonging to the P=0.5mm series. It features a Key B configuration with a height of 8.5mm. The contacts are gold plated to ensure reliable signal transmission. This component is designed for high-speed data applications requiring secure mechanical retention and electrical stability in compact form factors.

Edgeboard Connectors Feature Summary

Key B configuration supports specific pinout requirements for M.2 modules
Gold plating on contacts provides corrosion resistance and low contact resistance
Compact 8.5mm height design accommodates space-constrained electronic assemblies

Edgeboard Connectors Applications

M.2 SSD storage module interconnects
High-speed data expansion cards
Compact computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the exact suffix against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure compatibility with the target PCB footprint and mating device keying. Request official RoHS compliance documentation prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this connector when a Key B interface is required for M.2 applications. The 0.5mm pitch allows for dense pin arrangements within limited board areas. Confirm that the 8.5mm height aligns with the system's mechanical envelope constraints and clearance requirements.

Edgeboard Connectors Part Context

This component is part of the Amphenol ICC portfolio, which includes extensive solutions for information and communication markets. The brand focuses on signal integrity and power management technologies for commercial electronics.
