10157063-0221010LF

Edgeboard Connectors Overview

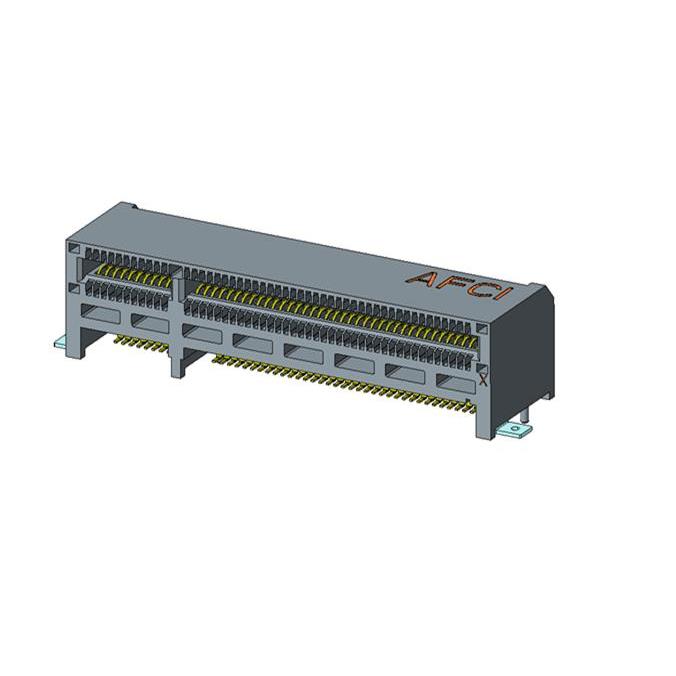

The Amphenol ICC (FCI) 10157063-0221010LF is a PCI Express Gen4 right-angle surface-mount receptacle featuring 98 positions. It utilizes a 1.00mm pitch and operates with gold contacts. The connector has a profile height of 12mm and is designed for high-speed data transmission applications requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen4 interface standards for high-bandwidth data transfer
• Right-angle surface-mount design facilitates compact board layout integration
• Gold contact plating ensures reliable signal integrity and corrosion resistance

Edgeboard Connectors Applications

• High-performance computing systems
• Server backplane interconnects
• Industrial automation control boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm pin configuration and termination style. Ensure compatibility with the target PCB stack-up regarding the 12mm height requirement. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when Gen4 PCIe speeds are required in space-constrained environments. The right-angle form factor is suitable for vertical mating connections. Evaluate thermal management needs due to the surface-mount topology and ensure adequate solder paste volume for the 98-position array.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI PCI Express connector family, engineered for next-generation computing architectures. It represents an evolution in high-density interconnect solutions, offering improved signal performance over previous generations while maintaining mechanical reliability in demanding operational environments.

Edgeboard Connectors Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series. Verify that any substitute maintains identical pin count, pitch, and height specifications to ensure mechanical fit and electrical continuity without redesigning the host assembly.
