10157930-001RLF

Edgeboard Connectors Overview

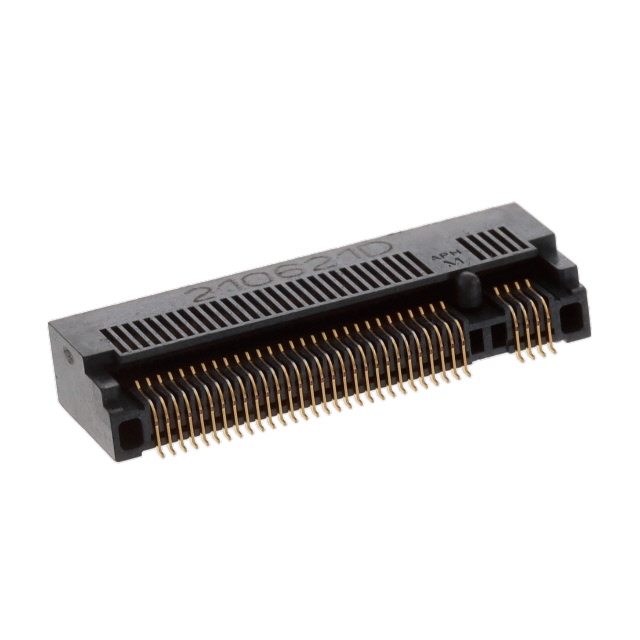

The Amphenol ICC (FCI) 10157930-001RLF is a PCI Express M.2 female connector featuring 75 positions with a 0.020-inch (0.50mm) pitch. It utilizes dual read-out capability and surface mount right-angle mounting for secure board integration. The contacts are made of copper alloy with gold plating to ensure reliable signal transmission. Designed for high-speed data applications, this component supports PCIe Gen 3/4 standards and includes board guide and solder retention features for enhanced mechanical stability.

Edgeboard Connectors Feature Summary

• Dual read-out capability for flexible system integration
• Surface mount right-angle design for compact PCB layouts
• Gold-plated copper alloy contacts for signal integrity

Edgeboard Connectors Applications

• PCIe Gen 3/4 edgeboard connections
• M.2 module interfaces
• High-speed data transfer systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix 'RLF' against official Amphenol documentation to confirm lead time and compliance status. Ensure compatibility with M.2 Key M specifications. Cross-reference the 75-position count and 0.50mm pitch with target PCB footprint requirements before ordering.

Edgeboard Connectors Selection Notes

Select this component for applications requiring right-angle surface mount connectivity with dual read-out support. Confirm that the 0.020-inch pitch matches the mating card dimensions. Validate that the gold contact finish meets the environmental and durability requirements for the intended operational lifespan.

Edgeboard Connectors Part Context

This part belongs to the Amphenol ICC (FCI) PCIe M.2 connector family, designed for modern computing and storage solutions. As an Amphenol product, it leverages advanced manufacturing techniques for signal integrity. The series supports high-density interconnects essential for next-generation data centers and consumer electronics.

Edgeboard Connectors Replacement Considerations

Consult official substitution lists for equivalent 75-position M.2 connectors with identical 0.50mm pitch and right-angle mounting. Verify pinout compatibility and mechanical footprint alignment before replacing.
