10159072-1002THLF

Edgeboard Connectors Overview

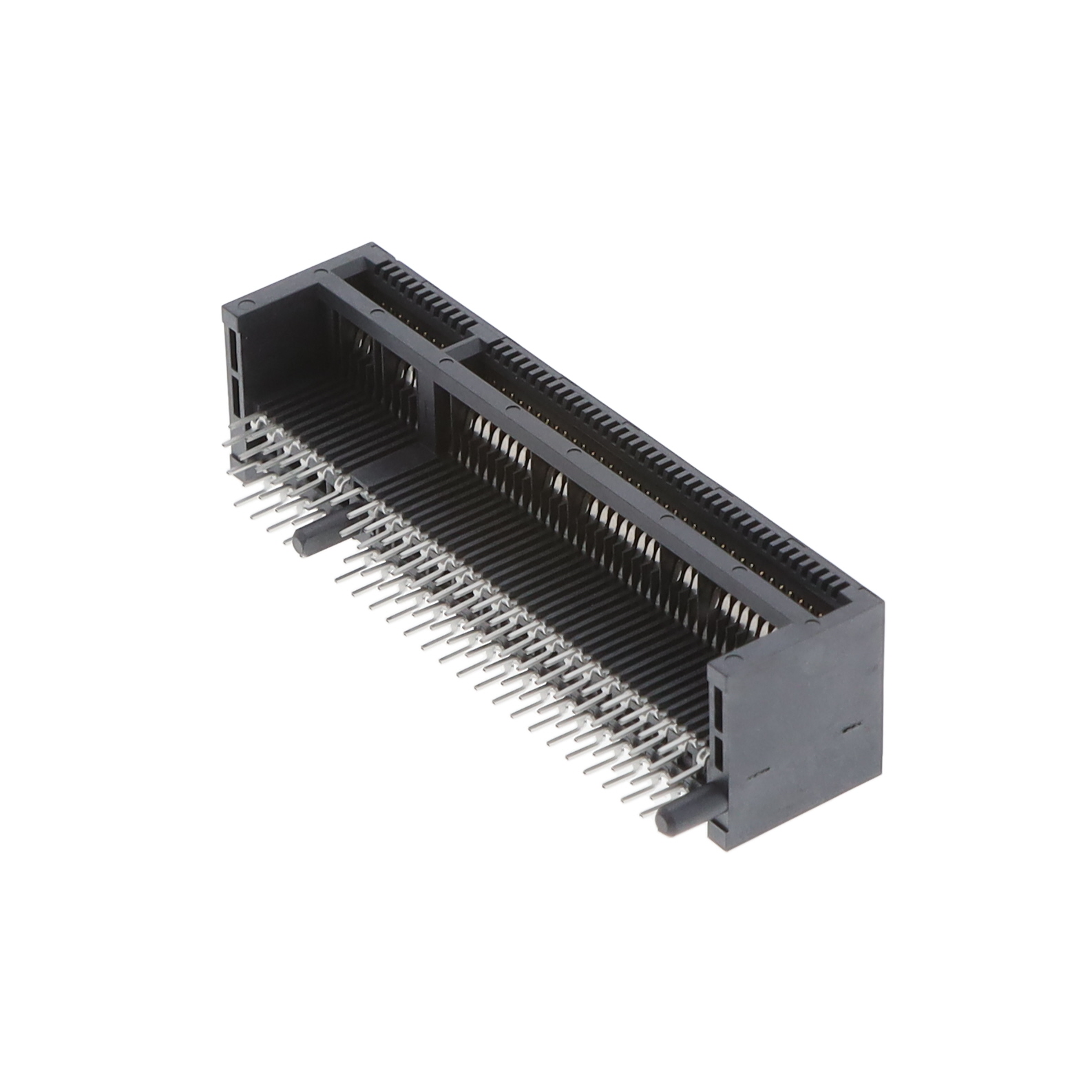

The Amphenol ICC (FCI) 10159072-1002THLF is a PCI Express Gen4 edgeboard connector designed for high-speed data transmission. It features a 98-position female interface with gold contact plating to ensure reliable signal integrity. The component utilizes a right-angle through-hole mounting style, accommodating a board height of 1.012mm. This configuration supports vertical integration in compact electronic assemblies requiring robust mechanical stability and electrical performance.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen4 specifications for enhanced bandwidth
• Right-angle orientation facilitates space-efficient board stacking
• Through-hole termination provides secure mechanical anchoring

Edgeboard Connectors Applications

• High-performance computing server backplanes
• Graphics processing unit expansion cards
• Network interface card interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating type, and mounting orientation. Ensure compatibility with the target PCB stack-up dimensions and mating connector specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing systems requiring PCIe Gen4 compliance with limited lateral space. The right-angle form factor is optimal for vertical card insertion. Confirm that the through-hole process aligns with the assembly line capabilities and thermal profile requirements.

Edgeboard Connectors Part Context

This part belongs to the Amphenol FCI I/O connector portfolio, specifically engineered for the PCI Express ecosystem. It addresses the industry demand for higher data rates while maintaining standard mechanical footprints. The series integrates advanced contact technologies to support next-generation computing architectures.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 98-position right-angle PCIe connectors from the same manufacturer family. Verify identical pinout definitions and mechanical tolerances before substituting with alternative part numbers.
