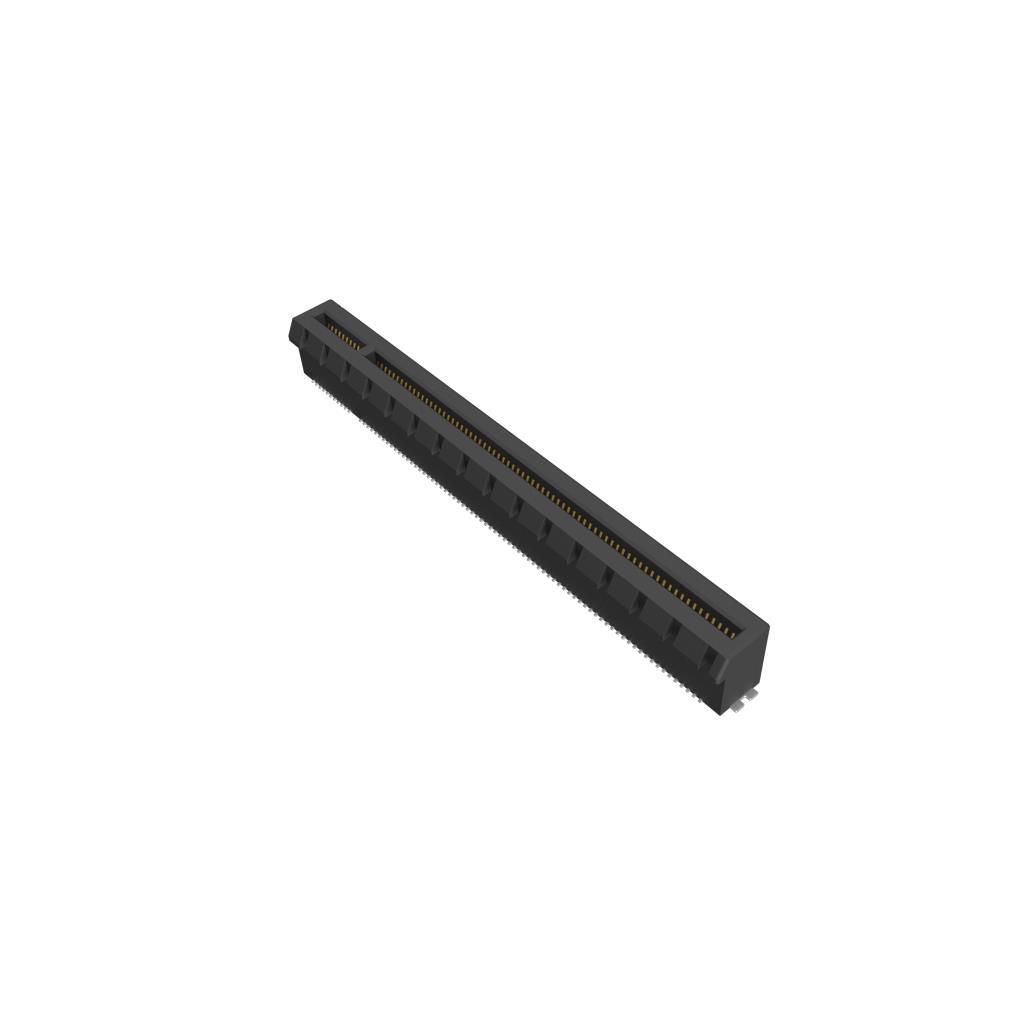

10165968-113Y000LF

$6.71

Description：PCIE GEN6 CEM SURFACE-MOUNT
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:c6cb3df0c917 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10165968-113Y000LF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is PCIE GEN6 CEM SURFACE-MOUNT. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10165968-113Y000LF

Description：PCIE GEN6 CEM SURFACE-MOUNT
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 71
Number of Positions：164
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp, Solder Retention
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-55°C ~ 85°C

Edgeboard Connectors datasheet and documents for 10165968-113Y000LF

10165968-113Y000LF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) 10165968-113Y000LF is a PCIe Gen 6 Card Edge Connector designed for high-speed data transmission. It supports rates up to 64GT/s, ensuring reliable performance in demanding environments. This component is engineered for robust connectivity in server and workstation applications.

Edgeboard Connectors Feature Summary

Supports PCIe Gen 6 standards with high-speed data transmission capabilities
Engineered for reliable connectivity in high-performance computing systems

Edgeboard Connectors Applications

Servers
Workstations
Routers
Industrial embedded systems
Data storage

Edgeboard Connectors Procurement Notes

Verify the specific part number 10165968-113Y000LF against official Amphenol FCI documentation to confirm current availability and specifications. Ensure compatibility with target system requirements before procurement.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring PCIe Gen 6 performance. Consider factors such as mechanical fit, signal integrity, and thermal management when integrating into server or workstation designs.

Edgeboard Connectors Part Context

This card edge connector belongs to Amphenol FCI's PCIe Gen 6 series, targeting high-bandwidth data transfer needs in modern computing infrastructure.
