10166503-005RHLF

$7.43

Description：STACKED M.2 R/A SMT-10166503-005
Series：PCIE M.2
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:0b0ec1652863 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

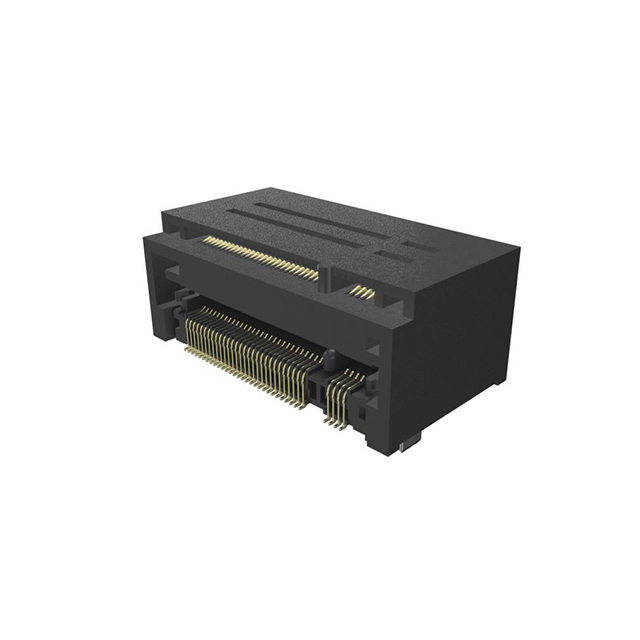

10166503-005RHLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is STACKED M.2 R/A SMT-10166503-005. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10166503-005RHLF

Description：STACKED M.2 R/A SMT-10166503-005
Series：PCIE M.2
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：134
Card Thickness：-
Number of Rows：4
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide, Solder Retention
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 10166503-005RHLF

10166503-005RHLF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) part number 10166503-005RHLF is a surface mount, right-angle edgeboard connector designed for M.2 (NGFF) Mini Card applications. It features 134 positions with a 0.020-inch (0.50mm) pitch and utilizes gold plating on the contacts. The connector employs a stacked key M configuration to ensure proper mating alignment. Termination is achieved via soldering, and the contact material consists of copper alloy.

Edgeboard Connectors Feature Summary

Designed specifically for M.2 (NGFF) Mini Card edgeboard connections
Features a stacked key M configuration for precise alignment
Utilizes gold-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

M.2 (NGFF) Mini Card interface connections
High-speed data transfer modules
Wireless communication cards

Edgeboard Connectors Procurement Notes

Verify that the specific suffix 'RHLF' matches the required right-angle orientation and lead-free status in your design files. Confirm the 134-position count and stacked key M requirement against the target M.2 module specifications to ensure mechanical compatibility.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, right-angle connection is required for M.2 modules. Ensure the PCB layout accommodates the surface mount footprint and the specific stacking height associated with the 0.50mm pitch design.

Edgeboard Connectors Part Context

This connector belongs to the high-density interconnect portfolio from Amphenol ICC (FCI), formerly FCI. It supports modern computing architectures requiring compact form factors and high pin counts for data-intensive applications like NVMe SSDs and Wi-Fi/Bluetooth combo cards.
