10173133-A41310HLF

$6.99

Description：PCIE GEN6 CEM STRADDLE MOUNT
Series：PCIe Gen 5
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:a6a86cca4b34 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

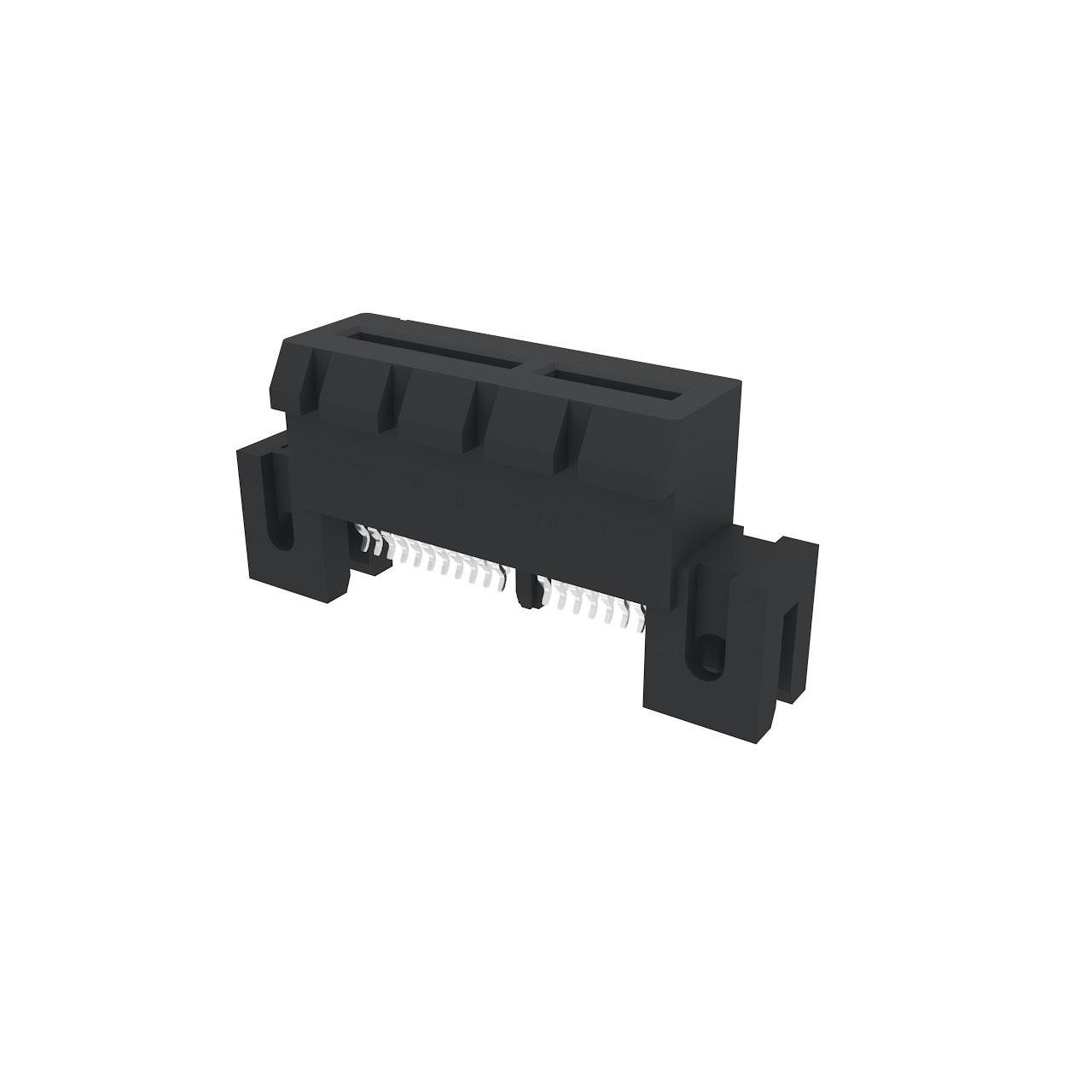

10173133-A41310HLF is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is PCIE GEN6 CEM STRADDLE MOUNT. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 10173133-A41310HLF

Description：PCIE GEN6 CEM STRADDLE MOUNT
Series：PCIe Gen 5
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 71
Number of Positions：164
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Locking Ramp
Mounting Type：Board Edge, Straddle Mount
Termination：-
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 10173133-A41310HLF

10173133-A41310HLF

Edgeboard Connectors Overview

The Amphenol ICC (FCI) 10173133-A41310HLF is a high-density PCIe card edge connector designed for surface mount applications. It features a vertical x16 configuration with LL flip terminal type, suitable for Gen 6 interfaces. The component has 164 contacts arranged in two rows with a 0.5mm pitch and 0.039 inch spacing. Rated for 250VAC and 2A, it utilizes copper alloy contacts with 30.0µin gold plating. The housing is black plastic, and the connector supports straddle mount board edge mounting.

Edgeboard Connectors Feature Summary

Supports PCIe Gen 6 Flip technology for high-speed data transmission
Features LL flip terminal type for secure surface mount connection
Utilizes gold-plated copper alloy contacts for signal integrity
Designed for straddle mount board edge installation

Edgeboard Connectors Applications

Servers and workstations
Routers and network equipment
Industrial embedded systems
Data storage devices

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct contact finish and material specifications. Confirm RoHS compliance status through official documentation. Check for product change notifications regarding manufacturing updates. Ensure compatibility with target PCB design rules for surface mount assembly. Validate that the selected variant matches the required electrical ratings for the application.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring high-density PCIe Gen 6 connectivity. Consider the vertical orientation and straddle mount style for space-constrained designs. Evaluate the 0.5mm pitch against available footprint constraints. Assess the 2A current rating against power distribution requirements. Verify mechanical stability needs for the specific industrial or server environment.

Edgeboard Connectors Part Context

This component belongs to the Amphenol FCI PCIe Card Edge Connector family. It is part of the broader portfolio supporting information and communication markets. The series emphasizes signal integrity and robust construction for demanding electronic environments.
