Product Detailed Parameters

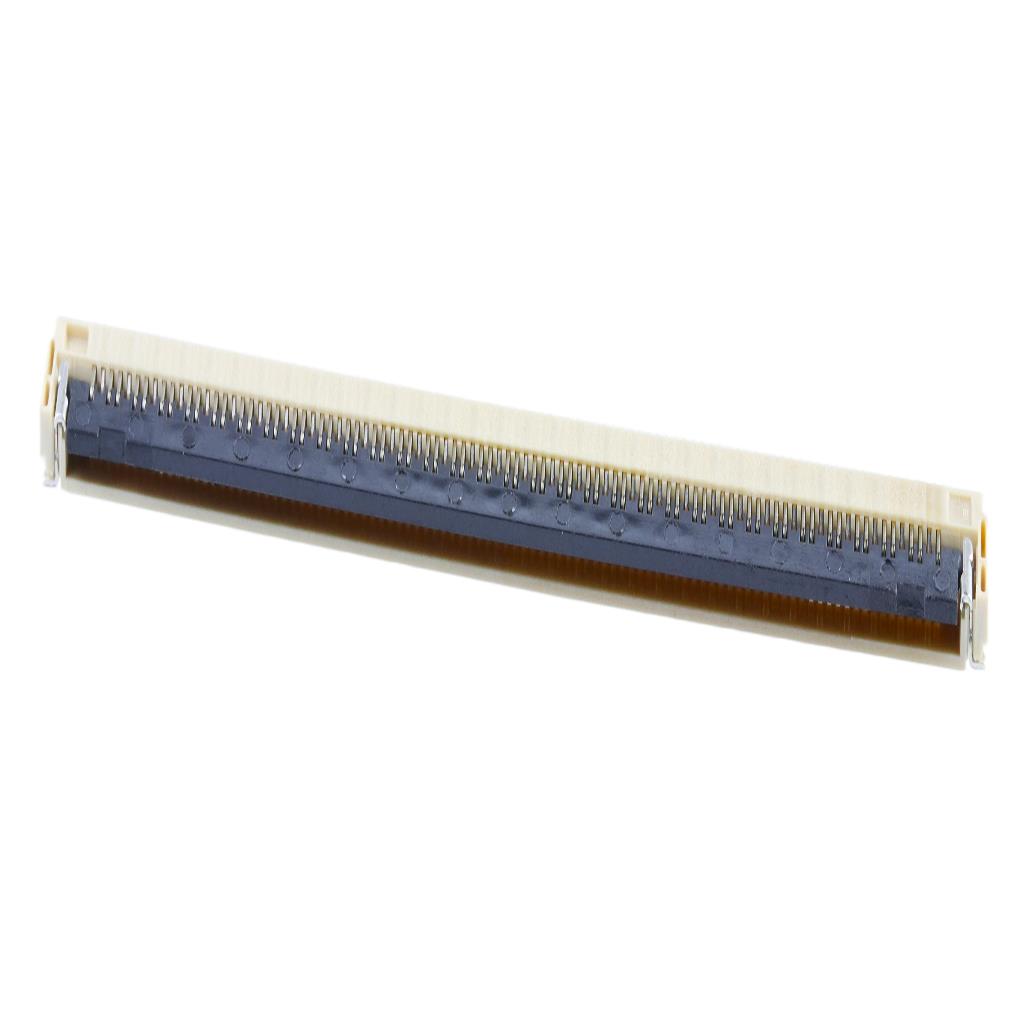

- Description：CONN FFC BOTTOM 96POS 0.5MM R/A
- Series：Easy-On 104083
- Mfr：Molex
- Package：Box
- Flat Flex Type：FFC, FPC
- Mounting Type：Surface Mount, Right Angle
- Connector/Contact Type：Contacts, Bottom
- Number of Positions：96
- Pitch：0.020" (0.50mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.059" (1.50mm)
- Locking Feature：Flip Lock
- Cable End Type：Straight, Tapered
- Contact Material：Phosphor Bronze
- Contact Finish：Gold
- Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating：50V
- Operating Temperature：-20°C ~ 85°C
- Material Flammability Rating：UL94 V-0
