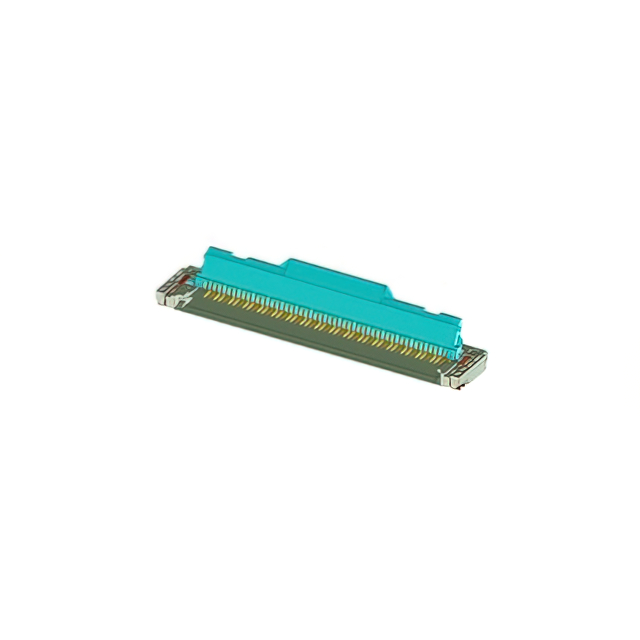

1042345117

Product Detailed Parameters

• Description：CONN FFC 51POS 0.5MM R/A
• Series：Easy-On 104234
• Mfr：Molex
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：51
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.33mm
• Height Above Board：0.059" (1.50mm)
• Locking Feature：Flip Lock
• Cable End Type：Notched
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0
