104361-8

Headers, Male Pins Overview

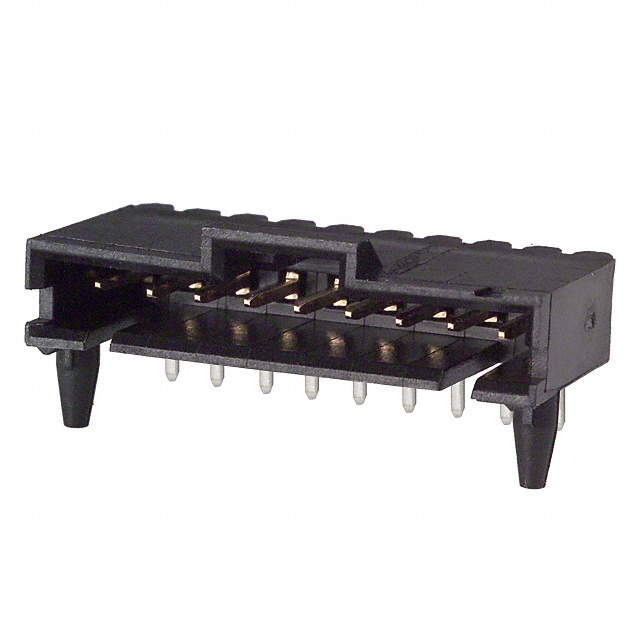

The TE Connectivity AMP Connectors part number 104361-8 is a shrouded, right-angle male header connector belonging to the AMPMODU MTE series. It features a 2x6 pin configuration with a 0.100-inch (2.54mm) contact pitch. Designed for through-hole mounting, the connector utilizes gold-plated contacts and a black thermoplastic insulator rated UL94 V-0. The unit supports a current rating of 3A and operates within a temperature range of -65°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle board-to-board or cable interconnection design
• Four-wall shrouding for precise alignment and protection
• Gold-plated contact finish for reliable signal transmission
• Keyed housing options available for polarity assurance

Headers, Male Pins Applications

• Automotive electronic control units
• Telecommunications infrastructure equipment
• Medical diagnostic devices
• General industrial instrumentation

Headers, Male Pins Procurement Notes

Verify the specific suffix code on the component marking to confirm the exact keying position and contact plating thickness. Ensure the selected variant matches the required shroud height and locking mechanism specifications for the target PCB layout. Cross-reference the official datasheet for any recent product change notices regarding material updates or discontinuance status.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, right-angle interface is required for high-density signal routing. The AMPMODU MTE series offers robust mechanical stability and consistent electrical performance. Evaluate the necessary keying configurations to prevent mating errors in multi-connector assemblies. Confirm that the through-hole termination method aligns with the manufacturing process capabilities.

Headers, Male Pins Part Context

This component is part of the extensive AMPMODU MTE family, widely recognized for its versatility in mixed-signal applications. The series provides various pin counts and orientations to accommodate diverse system architectures. As a legacy product from TE Connectivity's established connector portfolio, it ensures long-term supply chain stability for critical infrastructure projects.

Headers, Male Pins Replacement Considerations

Direct substitutes include 5-104361-8 and 6-104361-1. Verify that alternative part numbers match the original pin count, shrouding style, and contact orientation before integration.
