1043757

Headers, Male Pins Overview

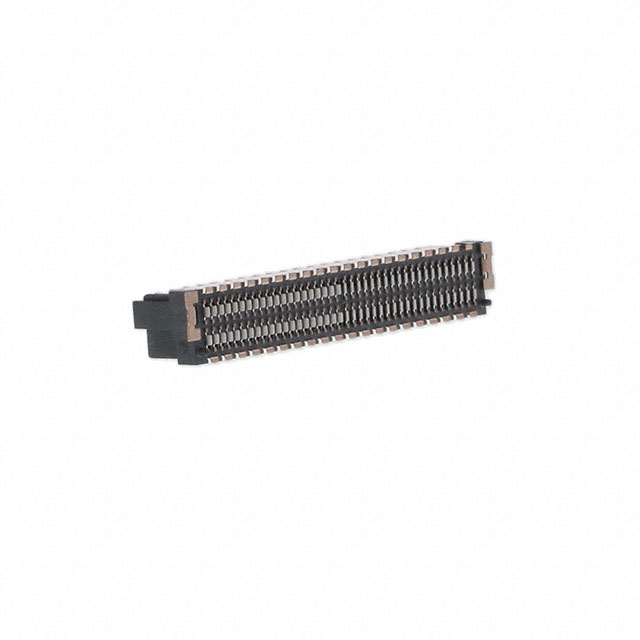

The Phoenix Contact 1043757 is a shielded surface-mount mezzanine connector header featuring an 80-position, two-row configuration with a 0.8 mm pitch. Constructed from copper alloy with gold-plated contacts, it supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC. The unit utilizes ScaleX technology for robustness and offers flexible device design options including various stack heights. It operates within a temperature range of -55°C to 125°C, meets UL94 V-0 flammability ratings, and features black insulation.

Headers, Male Pins Feature Summary

• Shielded SMD male connector design ensuring signal integrity
• ScaleX technology provides high robustness and flexibility
• Double-sided contact system enables space-saving transmission

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Mezzanine connector applications requiring shielding
• Signal and data transmission in compact electronic devices

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required stack height and contact configuration. Confirm that the shielded variant aligns with electromagnetic interference requirements for the target assembly. Ensure surface-mount compatibility with standard reflow soldering profiles. Cross-reference the 80-position count against schematic designs to prevent pinout mismatches during integration.

Headers, Male Pins Selection Notes

Select this component when high-density interconnects with shielding are necessary. The 0.8 mm pitch suits applications demanding compact layouts. Gold plating ensures reliable conductivity over repeated cycles. Consider the operating temperature range and mechanical robustness provided by ScaleX technology for demanding environments compared to non-shielded alternatives.

Headers, Male Pins Part Context

This part belongs to the FP series of Phoenix Contact mezzanine connectors. It represents a specialized solution for vertical or horizontal board stacking where signal integrity is critical. The product line emphasizes flexible design parameters, allowing engineers to customize stack heights while maintaining consistent electrical performance across the family.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
