1047957

Overview

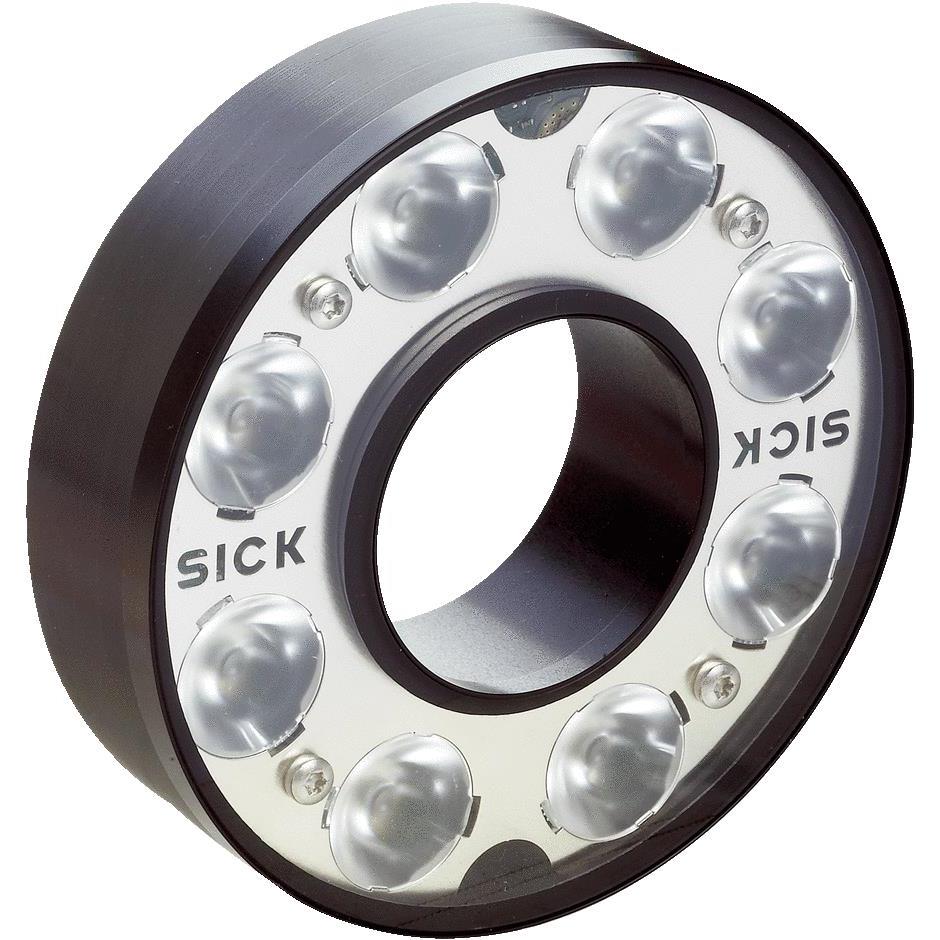

The SICK part number 1047957 corresponds to the ICL300-F202S01, an intense camera lighting fixture designed for industrial machine vision applications. This component functions as a specialized illumination source, specifically configured with ring lighting and bright field spot optics utilizing red lighting technology. It is engineered to provide consistent, high-intensity light output necessary for enhancing image contrast and quality in automated inspection systems.

Feature Summary

• Provides specialized ring lighting configuration for uniform object illumination
• Utilizes bright field spot optical geometry to highlight surface features
• Employs red lighting spectrum to optimize contrast for specific material inspections

Applications

• Industrial machine vision system integration
• Automated optical inspection processes
• Surface feature highlighting in manufacturing environments

Procurement Notes

Verify the exact model designation ICL300-F202S01 against technical drawings before procurement. Confirm electrical requirements and mounting specifications match the target vision system infrastructure. Ensure compatibility with existing controller interfaces and power supplies to prevent integration errors during installation.

Selection Notes

Select this unit when red-spectrum bright field illumination is required for specific material contrasts. Evaluate whether the fixed ring lighting geometry meets the field of view and working distance constraints of the application. Consider environmental factors such as ambient light interference when determining if this specific intensity level is sufficient.

Part Context

This component belongs to the SICK ICL300 series of camera lighting fixtures. The series provides dedicated illumination solutions for various machine vision tasks. Part 1047957 represents a specific configuration within this family, distinguished by its red light emission and bright field spot characteristics tailored for particular inspection challenges.

Replacement Considerations

Consult official SICK documentation for direct cross-references. Verify that any substitute maintains identical optical geometry, spectral output, and mechanical mounting dimensions to ensure seamless replacement without system redesign.
