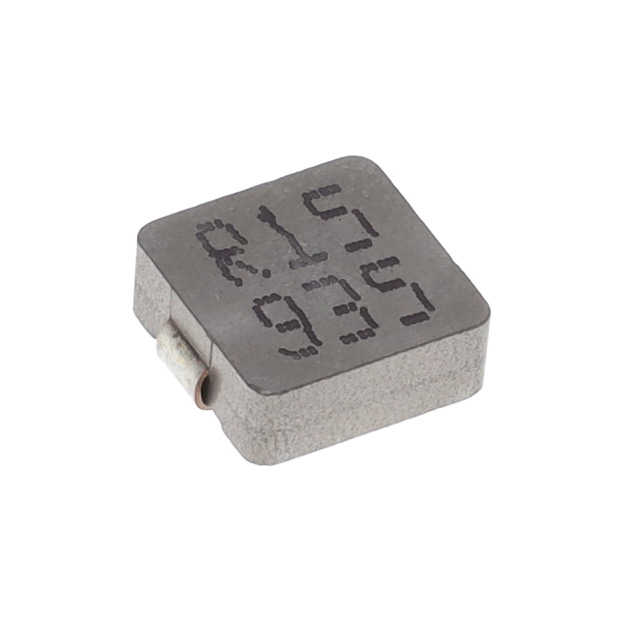

104CDMCCDS-R15MC

Product Detailed Parameters

• Description：FIXED IND 150NH 43A 0.65MOHM SMD
• Series：104CDMC/DS
• Mfr：Sumida America Components Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Molded
• Material - Core：Metal
• Inductance：150 nH
• Tolerance：±20%
• Current Rating (Amps)：43 A
• Current - Saturation (Isat)：71A
• Shielding：Shielded
• DC Resistance (DCR)：0.65mOhm Max
• Q @ Freq：-
• Frequency - Self Resonant：-
• Ratings：-
• Operating Temperature：-55°C ~ 125°C
• Inductance Frequency - Test：100 kHz
• Mounting Type：Surface Mount
• Package / Case：Nonstandard
• Supplier Device Package：SMD
• Size / Dimension：0.453" L x 0.394" W (11.50mm x 10.00mm)
• Height - Seated (Max)：0.157" (4.00mm)
• Features：-
