1053141510

Headers, Male Pins Overview

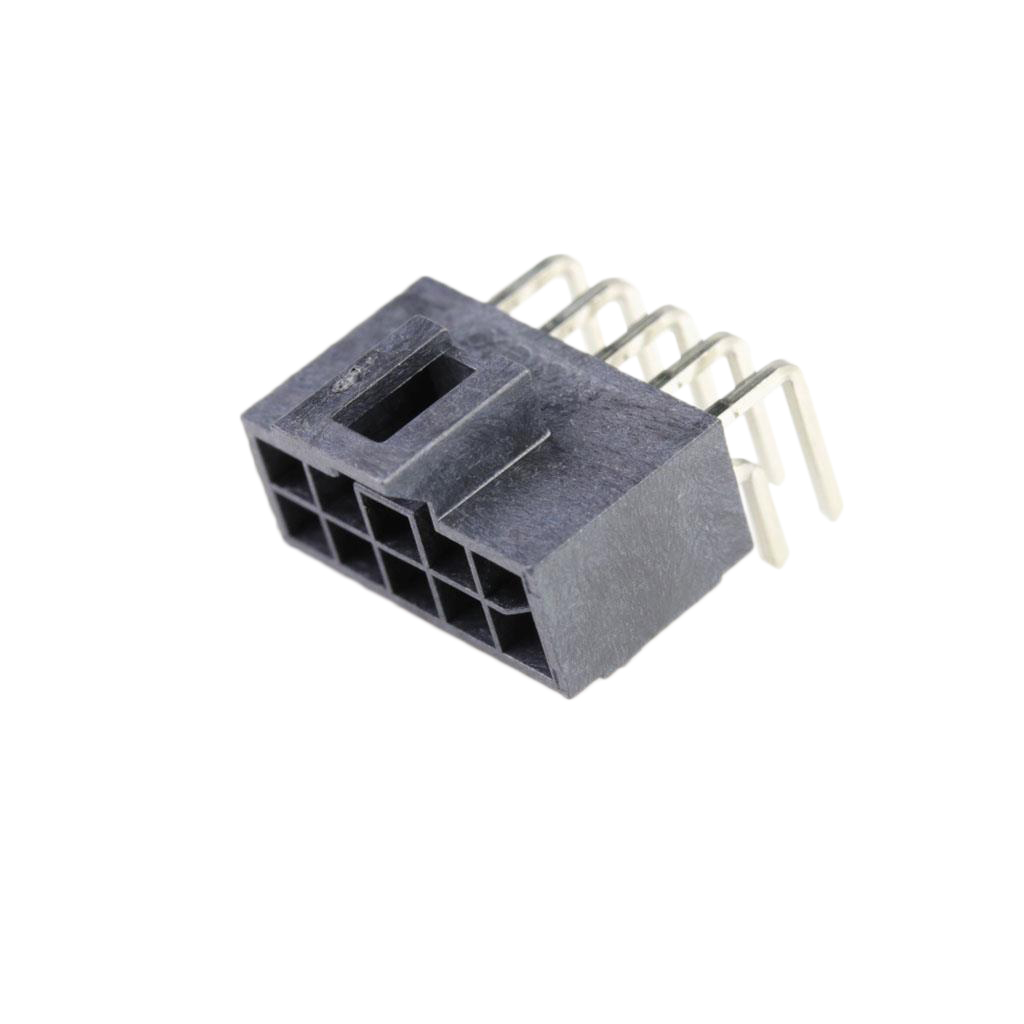

The Molex 1053141510 is a Nano-Fit right-angle header designed for through-hole PCB mounting. It features a dual-row configuration with 10 circuits and a 2.50mm (0.098 inch) pitch. The contacts are tin-plated, and the housing is black and glow-wire capable. The component is supplied in tape and reel packaging to facilitate automated assembly processes.

Headers, Male Pins Feature Summary

• Right-angle design optimized for space-constrained vertical board connections
• Glow-wire capable housing material for enhanced fire safety compliance
• Tin-plated contacts ensuring reliable electrical conductivity

Headers, Male Pins Applications

• Consumer electronics assemblies requiring compact interconnects
• Industrial control systems utilizing through-hole mounting
• Automotive electronic modules needing robust signal transmission

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and packaging format. Confirm that the glow-wire capability aligns with the target application's safety standards. Ensure the through-hole footprint dimensions correspond precisely with the PCB layout to guarantee proper mechanical fit during assembly.

Headers, Male Pins Selection Notes

Select this part when a low-profile, right-angle connection is necessary within a dual-row connector system. The 2.50mm pitch offers a balance between density and manufacturability. Consider the tin plating for general-purpose applications where gold plating is not strictly required for high-cycle mating.

Headers, Male Pins Part Context

This component belongs to the Nano-Fit family, which provides high-density interconnect solutions. The series is characterized by its small form factor and reliability in demanding environments. It complements other Nano-Fit receptacles and housings to create complete connector systems.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.50mm pitch, 10-position count, and right-angle orientation. Verify compatibility with existing tooling if manual insertion is used. Cross-reference pinout configurations to ensure signal integrity is preserved during replacement.
