1054311408

Headers, Male Pins Overview

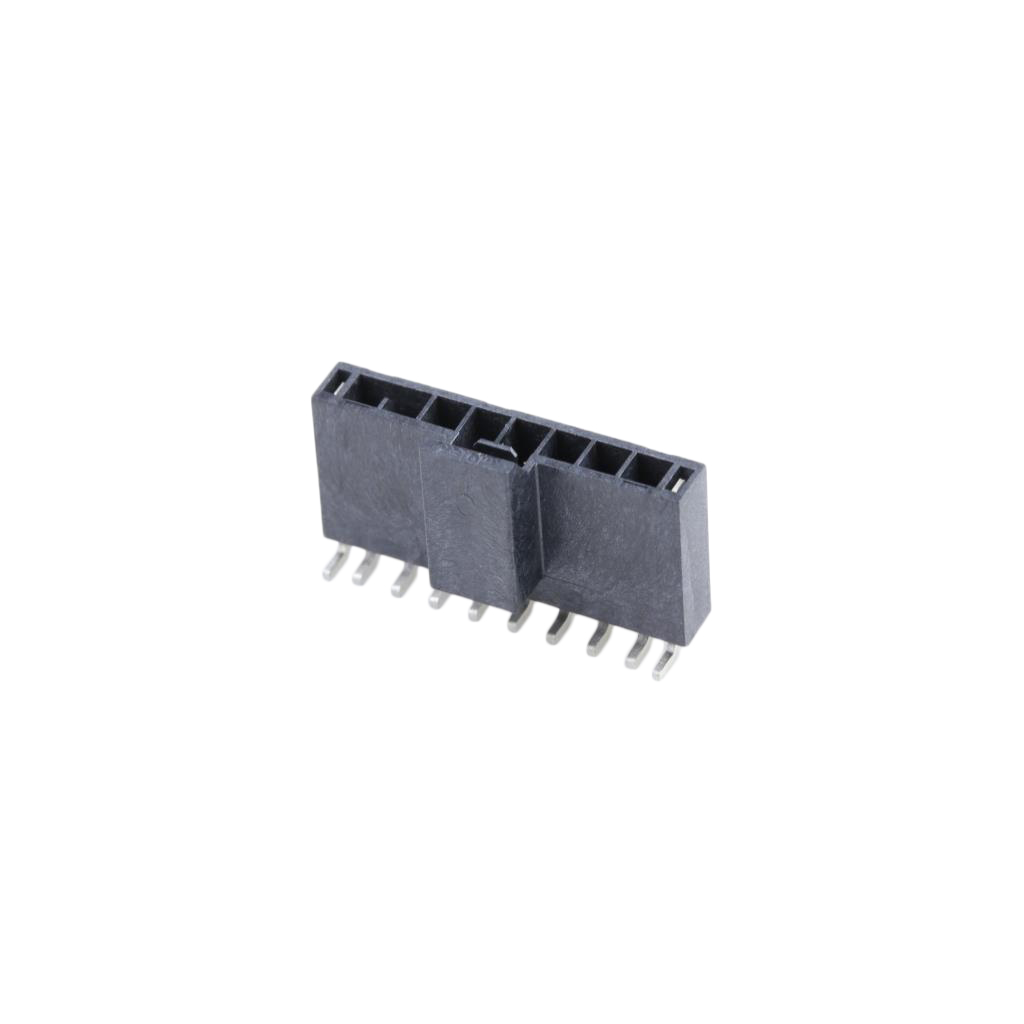

The Molex 1054311408 is a Nano-Fit vertical header designed for surface mount technology. It features an 8-position single-row configuration with a 2.50mm (0.098-inch) pitch. The connector utilizes tin-plated contacts rated for 6.5A current and supports a maximum operating temperature of +115°C. The housing is black, lubricated, and finished with 0.76µm gold plating on contact areas to ensure reliable signal transmission. This component includes pick-and-place tape compatibility for automated assembly processes.

Headers, Male Pins Feature Summary

• Surface mount vertical header design for PCB integration
• Single row configuration with 8 circuits
• Gold-plated contacts for enhanced conductivity
• Compatible with automated pick-and-place assembly

Headers, Male Pins Applications

• Consumer electronics internal connections
• Industrial control board interconnects
• Automotive electronic module assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Molex datasheet to confirm exact plating thickness and tape specifications. Ensure the procurement source provides valid manufacturer traceability documentation. Cross-reference the part number with the latest product release notes to confirm availability status and any potential obsolescence warnings before finalizing orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header is required for space-constrained surface mount applications. The 2.50mm pitch offers a balance between density and ease of handling. Consider the 6.5A current rating and +115°C thermal limit to ensure compatibility with the target circuit's electrical and environmental requirements during operation.

Headers, Male Pins Part Context

This part belongs to the Molex Nano-Fit family of connectors, which are engineered for high-density applications requiring reliable performance in compact form factors. The series is widely utilized in industries demanding robust interconnect solutions for consumer and industrial devices where space efficiency and signal integrity are critical design parameters.

Headers, Male Pins Replacement Considerations

Consult the official Molex replacement guide for direct substitutes. Verify that alternative parts match the 2.50mm pitch, 8-position count, and surface mount orientation. Ensure compatible mating terminals are available for the selected replacement option.
