1055767

Overview

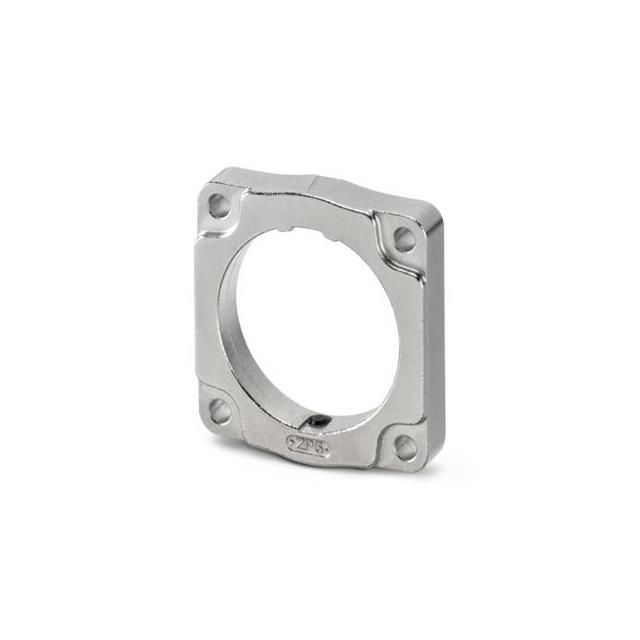

The Phoenix Contact 1055767 is a square mounting flange designed for M23 circular connectors. It features an axial seal to ensure environmental protection during installation. The component includes four M3 threaded holes for secure panel mounting. This accessory facilitates the integration of circular connectors into control panels and enclosures, providing a robust mechanical interface.

Feature Summary

• Provides a square mounting interface for M23 circular connectors
• Includes an integrated axial seal for environmental protection
• Features four M3 threaded holes for secure attachment

Applications

• Panel mounting for industrial circular connectors
• Integration into compact controller enclosures
• Secure fixation of front-end connections in control cabinets

Procurement Notes

Verify the part number 1055767 against official Phoenix Contact documentation to confirm compatibility with specific M23 connector series. Ensure that the required M3 fasteners are available separately if not included. Check for updated datasheets regarding material specifications and sealing performance ratings before finalizing procurement decisions.

Selection Notes

Select this flange when using M23 circular connectors requiring a square mounting profile. Confirm that the panel thickness accommodates the axial seal design. Verify that the M3 mounting hole pattern aligns with the enclosure or panel layout requirements for the specific application environment.

Part Context

This component belongs to the Phoenix Contact FLANGE-M23PRO-SG series. It serves as an accessory for circular connector systems, enabling standardized mounting solutions. The product is categorized under enclosures, panels, and fabrication components within the manufacturer's portfolio for industrial automation and control systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
