1056232

Overview

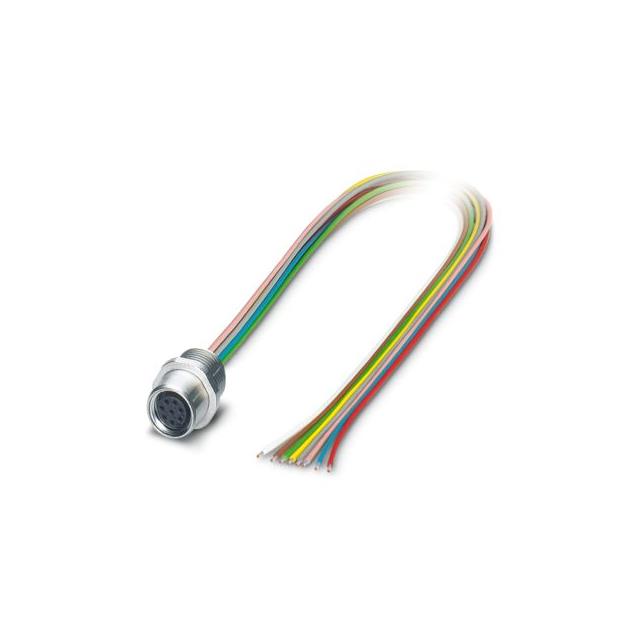

Phoenix Contact part number 1056232 is a flush-type device connector from the SACC-E series. It features an 8-position socket with M8 straight A-coding, designed for front mounting on free cable ends. The assembly includes individual wires with a length of 3 meters and utilizes 0.14 mm² PVC litz wire construction.

Feature Summary

• Front-mounting receptacle design for direct panel installation
• M8 straight connector interface with A-coding for secure mating
• Pre-assembled cable configuration with individual wire termination

Applications

• Industrial automation sensor connections
• Actuator signal transmission systems
• Control cabinet wiring integration

Procurement Notes

Verify that the required coding matches the system's M8 A-coding standard. Confirm the 3-meter cable length meets spatial constraints. Ensure the front-mounting form factor aligns with the enclosure cutout specifications. Check compatibility with the mating male plug housing to guarantee proper electrical continuity.

Selection Notes

Select this component when a pre-wired M8 solution is preferred over field-terminated connectors. The fixed 3-meter length simplifies inventory management compared to bulk cable options. Front-mounting reduces assembly time by eliminating separate bracket requirements. Verify that the 0.14 mm² conductor size supports the intended current load.

Part Context

This part belongs to Phoenix Contact's SACC-E series of circular cable assemblies. These components are engineered for robust industrial environments requiring reliable signal transmission. The M8 interface provides a compact connection solution suitable for space-constrained applications within automated machinery and control systems.

Replacement Considerations

Compatible substitutes include other Phoenix Contact M8 A-coded front-mounting receptacles with similar pin counts and cable lengths. Verify that any alternative maintains the same 3-meter specification and 0.14 mm² wire gauge to ensure mechanical and electrical equivalence.
