1056835

Overview

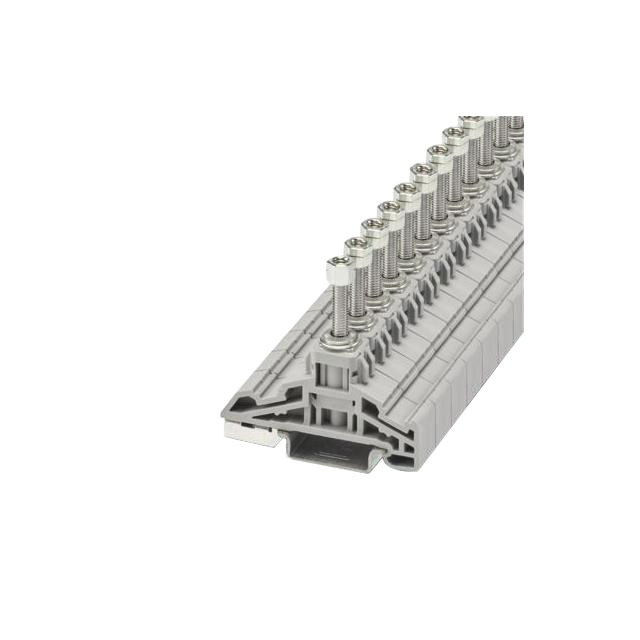

The Phoenix Contact HV M5/1 NFF (Part Number 1056835) is a high-current connector designed for robust electrical connections. It features a nominal voltage of 1000 V and a rated current capacity of 76 A. The component utilizes a bolt connection method with a single connection point. It supports a rated cross-section of 16 mm², ensuring reliable performance in demanding power distribution applications.

Feature Summary

• Engineered for high-current applications requiring stable electrical conductivity
• Utilizes a secure bolt connection method for mechanical stability
• Constructed from durable materials suitable for industrial environments

Applications

• High-power distribution systems
• Industrial machinery electrical connections
• Renewable energy infrastructure components

Procurement Notes

Verify the specific part number 1056835 against official Phoenix Contact documentation to ensure compatibility with system requirements. Confirm that the 1000 V nominal voltage and 76 A current ratings align with the intended application's electrical parameters before procurement.

Selection Notes

Select this component when a single-point high-current connection is required. Ensure the installation environment accommodates the bolt connection mechanism and that the wiring gauge matches the 16 mm² rated cross-section specification for optimal performance and safety compliance.

Part Context

This connector belongs to the HV series of high-current connectors manufactured by Phoenix Contact. These components are typically used in heavy-duty industrial settings where standard terminal blocks cannot handle the required current loads or voltage levels safely and effectively.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Phoenix Contact catalogs for compatible alternatives if this specific model is unavailable.
